XGB Series | ||
The Basic Unit | XBC-DR32H | Ac110 ~ 220V Power Supply, 16-Point Direct Current 24V Input, 16-Point Relay Output |
XBC-DR64H | Ac110 ~ 220V Power Supply, 32-Point Direct Current 24V Input, 32-Point Relay Output | |
XBC-DN32H | Ac110 ~ 220V Power Supply, 16-Point Direct Current 24V Input/16-Point Relay Transistor Output/Built-in Position Control | |
XBC-DN64H | Ac110 ~ 220V Power Supply, 32-Point Direct Current 24V Input/32-Point Relay Transistor Output/Built-in Position Control | |
XBM-DR16S | Direct 24V Power Supply, 8-Point Direct 24V Input, 8-Point Relay Output | |
XBM-DN16S | Direct 24V Power Supply, 8-Point Direct 24V Input, 8-Point Relay Transistor Output, Built-in Position Control | |
XBM-DN32S | Direct 24V Power Supply, 16-Point Direct 24V Input, 16-Point Relay Transistor Output, Built-in Position Control | |
PLC,XBC-DR10E,WUXI | 240ns/Step, 4K Step, 6-Point Input/Relay 4-Point Output(Power Supply AC85 ~ 264v) | |
PLC,XBC-DR14E,WUXI | 240ns/Step, 4K Step, 8-Point Input/Relay 6-Point Output(Power Supply AC85 ~ 264v) | |
PLC,XBC-DR20E,WUXI | 240ns/Step, 4K Step, 12-Point Input/Relay 8-Point Output (Power Supply AC85 ~ 264v) | |
PLC,XBC-DR30E,WUXI | 240ns/Step, 4K Step, 18-Point Input/Relay 12-Point Output (Power Supply AC85 ~ 264v) | |
PLC,XBC-DN20S,WUXI | 94ns/Step, 15K Step, 12-Point Input, 8-Point Transistor Output, Built-in 2 Channels (RS232 Or RS485), | |
PLC,XBC-DN30S,WUXI | 94ns/Step, 15K Step, 18-Point Input, 12-Point Transistor Output, Built-in 2 Channels (RS232 Or RS485),USB Download Port | |

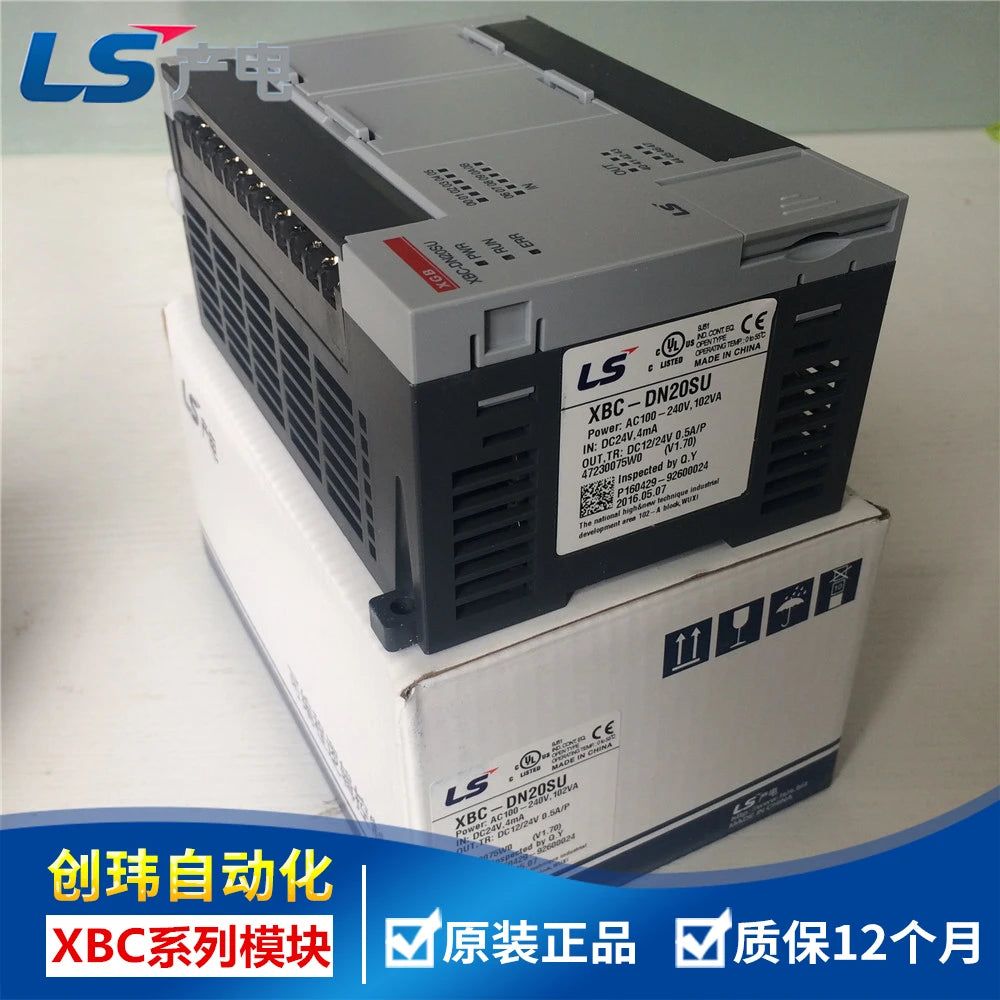

PLC,XBC-DN20SU,WUXI | 94ns/Step, 15K Step, 12-Point Input, 8-Point Transistor Output, Built-in 2 Channels (RS232 Or RS485),USB Download Port | |
PLC,XBC-DR20SU,WUXI | 94ns/Step, 15K Step, 12-Point Input, 8-Point Relay Output, Built-in 2 Channels (RS232 Or RS485),USB Download Port | |
PLC,XBC-DN30SU,WUXI | 94ns/Step, 15K Step, 18-Point Input, 12-Point Transistor Output, Built-in 2 Channels (RS232 Or RS485),USB Download Port | |
PLC,XBC-DR30SU,WUXI | 94ns/Step, 15K Step, 18-Point Input, 12-Point Relay Output, Built-in 2 Channels (RS232 Or RS485),USB Download Port | |
PLC,XBC-DN40SU,WUXI | 94ns/Step, 15K Step, 24-Point Input, 16-Point Transistor Output, Built-in 2 Channels (RS232 Or RS485),USB Download Port | |
PLC,XBC-DR40SU,WUXI | 94ns/Step, 15K Step, 24-Point Input, 16-Point Relay Output, Built-in 2 Channels (RS232 Or RS485),USB Download Port | |
PLC,XBC-DN60SU,WUXI | 94ns/Step, 15K Step, 36-Point Input, 24-Point Transistor Output, Built-in 2 Channels (RS232 Or RS485),USB Download Port | |
PLC,XBC-DR60SU,WUXI | 94ns/Step, 15K Step, 36-Point Input, 24-Point Relay Output, Built-in 2 Channels (RS232 Or RS485),USB Download Port | |
Option Card | PLC,XBO-RTCA,WUXI | RTC Clock, Battery |
PLC,XBO-AD02A,WUXI | 2-Channel Analog Input (Voltage/Current) | |
PLC,XBO-DA02A,WUXI | 2-Channel Analog Output (Voltage/Current) | |
PLC,XBO-AH02A,WUXI | 1-Channel Analog Input (Voltage/Current)/1-Channel Analog Output (Voltage/Current) | |
PLC,XBO-TC02A,WUXI | 2-Channel Thermocouple Input | |
PLC,XBO-RD01A,WUXI | 1-Channel Thermal Resistance Input | |
PLC,XBO-DC04A,WUXI | 4-Point Direct Current 24V Input | |
PLC,XBO-TN04A,WUXI | 4-Point Transistor (PN) Output | |
PLC,XBO-M2MB,WUXI | Memory Card | |
I/O Module | PLC,XBE-DC32A,WUXI | 32-Point Direct Current 24V Input |
PLC,XBE-TN32A,WUXI | 32-Point Transistor (PN) Output | |
PLC,XBE-RY16A,WUXI | 16-Point Relay Output | |
PLC,XBE-RY08A,WUXI | 8 dian Relay Output | |
PLC,XBE-DC16A,WUXI | 16-Point Direct Current 24V Input | |
PLC,XBE-DC08A,WUXI | 8-Point Direct Current 24V Input | |
Special Module | PLC,XBF-AD04A,WUXI | 4-Channel Analog Input (Voltage/Current) |
PLC,XBF-DV04A,WUXI | 4-Channel Analog Output (Voltage) | |
PLC,XBF-DC04A,WUXI | 4-Channel Analog Output (Current) | |
PLC,XBF-RD04A,WUXI | 4-Channel Thermal Resistance Input | |
PLC,XBF-AD08A,WUXI | 8-Channel Analog Input (Voltage/Current) | |
PLC,XBF-TC04S,WUXI | 4-Channel Thermocouple Input | |
PLC,XBF-PD02A,WUXI | 2-Axis Linear Drive Position Control Module | |
Communication Module | 47230019W0 | CNET(RS-422/485) Communication Module |
47230026W0 | Ethernet Communication Module | |
