MT6071iP Weinview 7 inch HMI Touch Screen panel,Replace MT6070IH5
Porduct Description
isplay | Display type | 7”TFT |
resolution | 800 x 480 | |
lightness (cd/m2) | 350 | |
contrast | 500:1 | |
backlight | LED | |
Backlight life | 30,000 hours | |
color | 65536 | |
Touch panel | Four-wire analog resistance type | |
memory | Flash (MB) | 128 |
DRAM (MB) | 64 | |
processor | 32Bit RISC 400MHz | |
communication | SD | N/A |
USB Host | USB 1.1 x 1 | |
USB Client | USB 2.0 x1 | |
Ethernet | N/A | |
COM | Com1: RS-232, Com2/RS-485 2w/4w | |
Calendar | Built in | |
power | input | 24±20%VDC |
power | 250mA 24V | |
Isolated power | N/A | |
Pressure-proof | 500VAC (1 munite) | |
Insulating resistance | 50MW at 500VDC | |
Quake-proof | 10 to 25Hz(X,Y,Z 2G 30munites) | |
| Specifications | Sheathing material | ABS |
Outside measurement | 200.4 x 146.5 x 34mm | |
Opening size(mm) | 192 x 138 mm | |
Weight(kg) | 0.52 kg | |
Operating Environment | Protection level | NEMA4/IP65 |
Storage Temperature | -20 to 60°C (-4°to 140°F) | |
Operating Temperature | 0°to 50°C(32°to 122°F) | |
Operating Humidity | 10% to 90% 40°C | |
CE Certification | CE | CE marked |
Software | EB8000 V465.06 or latest version |
Thank you for your support.
Because the product is widely used in China, so, the software language is Chinese. We’re so sorry for the inconvenience.
But don’t worry. Here’s below is the solutions in detail.
Hope it helpful.
Question:
No choice for TK series
Solutions:
Important
Before you install the software, please change the window to Chinese version, So please do as follows:
1> Change the window area to CHINA
2> Change the window language to Chinese
Step1:
Download the right software:
Step 2: Make sure the install language is Chinese.

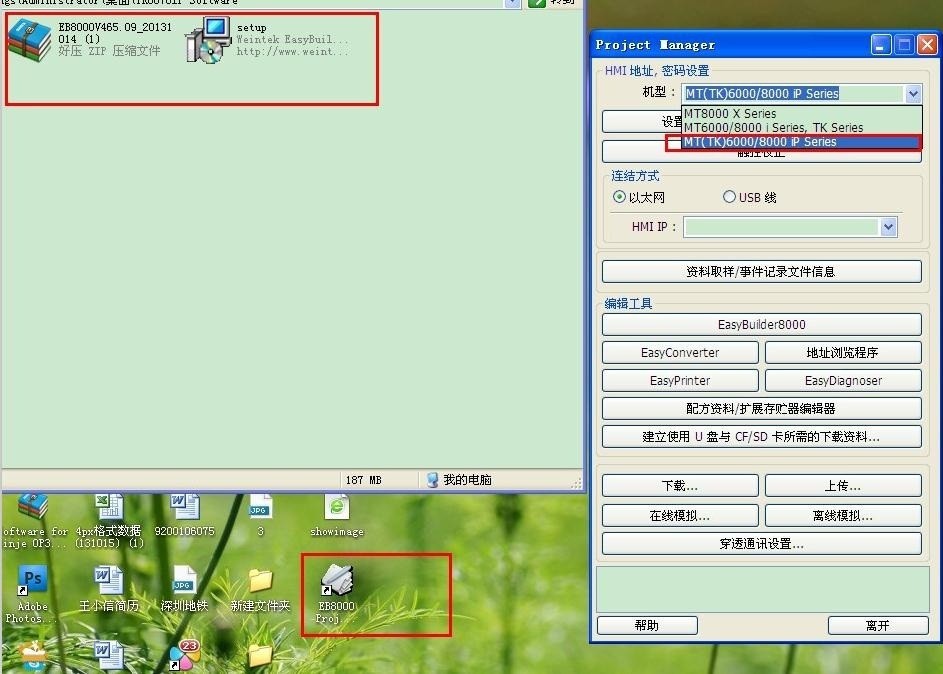

Here below is the result when you follow the steps above.
