KTV804 compatible LCD display general 9 inch for CNC machine replace old RGB MDA EGA CGA industrial CRT monitor
This product is used to replace a variety of CNC machine set old RGB, MDA, EGA, CGA industrial CRT monitors, wide compatibility, good effect.
Size 8.4-inch LCD, commonly known as 9-inch display.
KTV804 RGB, MDA, EGA, CGA special industrial monitors
1,supports the 15k to 48k line frequency signal, unrestricted field frequency input, automatic identification line field frequency input.
2,supports digital RGB, RGB analog and color, monochrome, black and white, grayscale and other video formats.
3,Supports both interlaced and progressive scanning modes.
4,Support for vertical resolution from 160 lines to 600 lines, automatic identification.
5,Support any level of resolution, automatic identification.
6,synchronizing signal separating support, the composite synchronization signal or the composite synchronizing signal on a video signal, automatic identification.
7, the output signal of the standard 800 x 600 VGA 60Hz field frequency or custom resolutions.
8, the input impedance of 75 ohms or 750 ohms offer two options, you can adapt weak signal equipment.
Model | KTV804 RGB EGA CGA MDA display | ||
display size | 174*131mm 8.4" 4：3 | ||
H&V scanning range | scan line signal:15Khz-48Khz positive and negative automatic adaptation | ||
Field scan signal:48hz-75hz positive and negative automatic adaptation | |||
Input signal | Signal type | MDA、CGA、EGA、VGA | |
Synchronous mode | HV line field separate,HV line field blending Cs,Green sync Sog | ||
TTL digital level 2.4-5.0V or Low 0-0.8V | |||
Analog level 0.7-2.5VP-P | |||
Input impedance | 75-500 ohm high input impedance, automatically adapt to a variety of strong and weak signal source. | ||
Scanning mode | Interlaced scan / progressive scan | ||
The signal line | 9 pin or 15 pin | ||
Display color | 262K, monochrome, black and white | ||
contrast ratio | 450:1 | ||
Brightness | 400 cd/m2 | ||
work environment | Temperature: -10-+65,humidity: 20%-95% | ||
Installation size | Including installation of border 240*150*50mm | ||
power adapter | External AC100V/240V to DC12V power, power: 18W, | ||

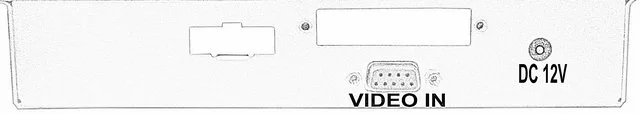

The interface of the display
1. VIDEO IN: used to connect the 15 pin D signal line or the 9 pin D signal line input.(choose one only)
2. DC 12V: display power input, used to connect the power adapter.(can choose 24VDC)
9 pin connector

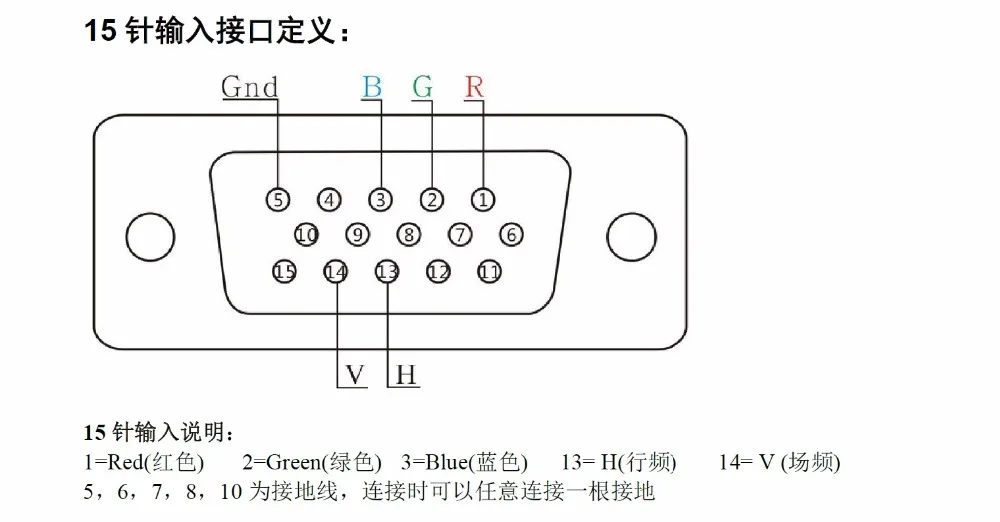

If you choose 15pin connector
If you don’t know it it’s matching your requirement, please write me and send me details about your monitor. The engineer will advise.
The same interface as the original and easy to install.
Because of we improvement all the time, the above images may have a little difference with the actual image. We reserve the right to revise the picture. We will try to put the pictures of the latest, if any other questions, please feel free to contact us.
Our products all adopt imported industrial LCD panel and power supplies from companies such as SHARP & AUO to ensures that it has a long service life, low failure rate, suitable for working condition of continuous use of 24 hours, without daily maintenance, with exactly same mechanical size of the original hole site, and can quickly restore production as long as to plug in the signal interface and power interface. Compared with the original CRT monitor, LCD monitor has advantages of simple structure, lower power consumption, little daily breakdown, strong vibration resistance, strong electromagnetic interference resistance, simple maintenance, light weight, and easier to standardization, etc.
All models are of regular stock to ensure rapid delivery and some special use display can be customized.
