Kinco MT5720T,MT5720T-DP,MT5720T-CAN,MT5720T-MPI 15" TFT HMI SCREEN PANEL
HAVE IN STOCK,FASTING SHIPPING
Performance specification
| Type | Size | Resolution | Port | Ethernet | Extension storage | Extension communication | Printing | Price(RMB) | |
|---|---|---|---|---|---|---|---|---|---|
| MT5620T-CAN | 12.1" | 800*600 | COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4 COM2:RS232，（内置隔离） | √ | 1 SD Card, 2 U Disks | CANOPEN | USB/Serial port | ||
| MT5620T-MPI | 12.1" | 800*600 | COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4 COM2:RS232，（内置隔离） | √ | 1 SD Card, 2 U Disks | MPI Expansion Board | USB/Serial port | ||
| MT4720TE | 15" | 1024*768 | COM0:PLC RS232/PLC RS485-2/4, COM1:PLC RS232/PLC RS485-2/4, COM2:PC/PLC RS232 | √ | 1 USB Host, 1 SD Card | - | USB Host/Slave/Serial port | ||
| MT5720T | 15" | 1024*768 | COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4 COM2:RS232 | √ | 1 SD Card, 2 U Disks | - | USB/Serial port | ||
| MT5720T-DP | 15" | 1024*768 | COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4 COM2:RS232 | √ | 1 SD Card, 2 U Disks | PROFIBUS-DP | USB/Serial port | ||
| MT5720T-CAN | 15" | 1024*768 | COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4 COM2:RS232 | √ | 1 SD Card, 2 U Disks | CANOPEN | USB/Serial port | ||
| MT5720T-MPI | 15" | 1024*768 | COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4 COM2:RS232 | √ | 1 SD Card, 2 U Disks | MPI Expansion Board | USB/Serial port | ||
| GH150E | 15" | 1024*768 | COM0:RS232/RS485-2W/4W; COM1:RS232/RS485-2W/4W; COM2:RS232; COM3:RS485-2W Built-in isolation for all serial ports | √ | 1 USB Host, 1 SD Card | - | USB Host/Serial port | ||
| GL150E | 15" | 1024*768 | COM0:RS232/RS485/RS422; COM2:RS232; | √ | 1 USB Host | - | USB Host/Serial port |
Performance specification for MT5720T
| Display | 15" TFT |
| Resolution | 1024*768 |
| Color | 65536 |
| Backlight | 2CCFL |
| Brightness | 250cd/m2 |
| Backlight life | 50000 hours |
| Touch Panel | 4-wire precision resistance network |
| Processor | 32-bit 520MHz RISC |
| Memory | 16M FLASH + 32M SDRAM |
| Expandable memory | 1 SD Card, 2 U Disks |
| Recipe memory & RTC | 512KB + RTC |
| Printer port | USB/Serial port |
| Ethernet | 10/100 Base-T |
| Audio Interface | 1 Audio Output Interface |
| Video Interface | 2 PAL Signal Video Input Interface,BNC Connector |
| Program download | 1 USB SLAVE Port |
| COM port | COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4 COM2:RS232 |
| Expansion Port | None support |
Electrical specification
| Isolated power supply | Built-in |
| Rated power | 16.8W |
| Rated voltage | DC24V |
| Input range | DC21V~DC28V |
| Power down allowe | <3ms |
| Insulation resistance | Greater than 50MΩ@ 500V DC |
| Dielectric strength test | 500V AC 1 minute |
Structure specification
| Shell color | Black |
| Shell material | metal |
| Dimensions(mm) | 406.5×313.5×48.3mm |
| Cutout size(mm) | 387.5×294.5mm |
| Weight | 5.1 Kg |

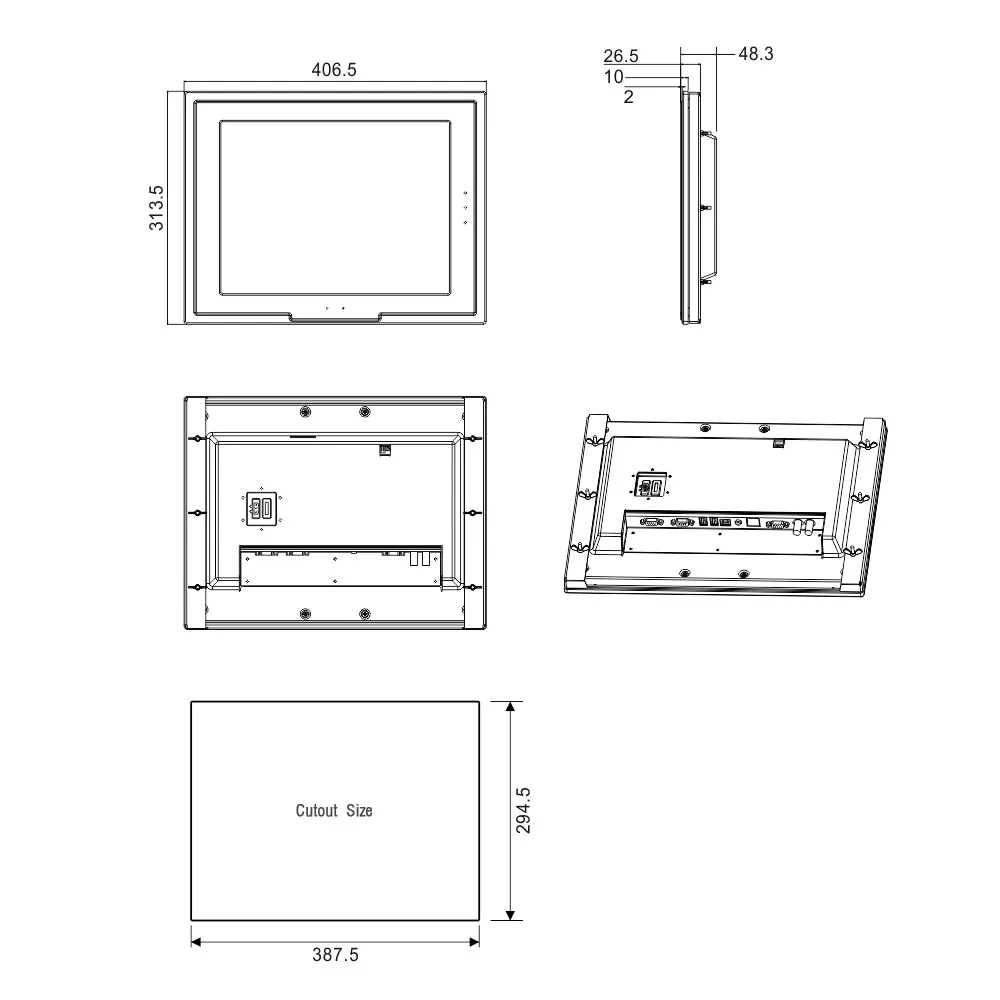

Dimensions (Unit:mm)
