Performance specification
Display | 8" TFT |
Resolution | 800*600 |
Color | 65536 |
Backlight | LED |
Brightness | 300cd/m2 |
Backlight life | 50000 hours |
Touch Panel | 4-wire precision resistance network |
Processor | 32-bit 520MHz RISC |
Memory | 16M FLASH + 32M SDRAM |
Expandable memory | 1 SD Card, 2 U Disks |
Recipe memory & RTC | 512KB + RTC |
Printer port | USB/Serial port |
Ethernet | 10/100 Base-T |
Audio Interface | 1 Audio Output Interface |
Video Interface | None |
Program download | 1 USB SLAVE Port |
COM port | COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4 COM2:RS232 |
Expansion Port | MPI |

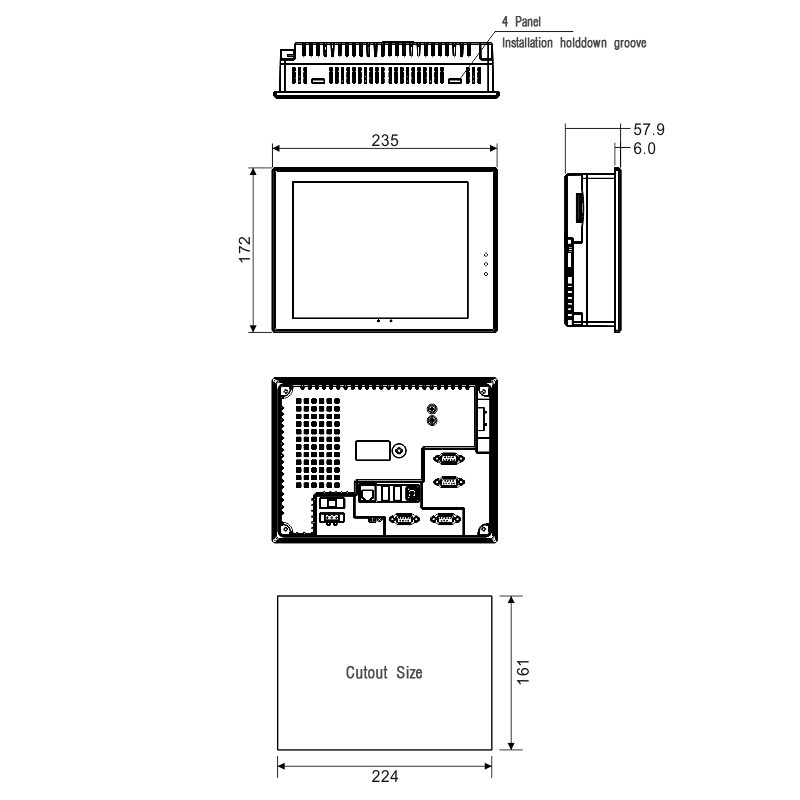

Dimensions (Unit:mm)
Structure specification
Shell color | light gray |
Shell material | ABS |
Dimensions(mm) | 235×172×57.9mm |
Cutout size(mm) | 224×161mm |
Weight | 1.27 Kg |
