Performance specification
Display | 10.4" TFT |
Resolution | 800*480 |
Color | 65536 |
Backlight | LED |
Brightness | 300cd/m2 |
Backlight life | 50000 hours |
Touch Panel | 4-wire precision resistance network |
Processor | 32-bit 800MHz RISC |
Memory | 128M FLASH + 64M DDR2 |
Expandable memory | 1 USB Host, 1 SD Card |
Recipe memory & RTC | 512KB + RTC |
Printer port | USB Host/Slave/Serial port |
Ethernet | None |
Program download | USB /Serial port |
COM port | COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4, COM2:RS232 |

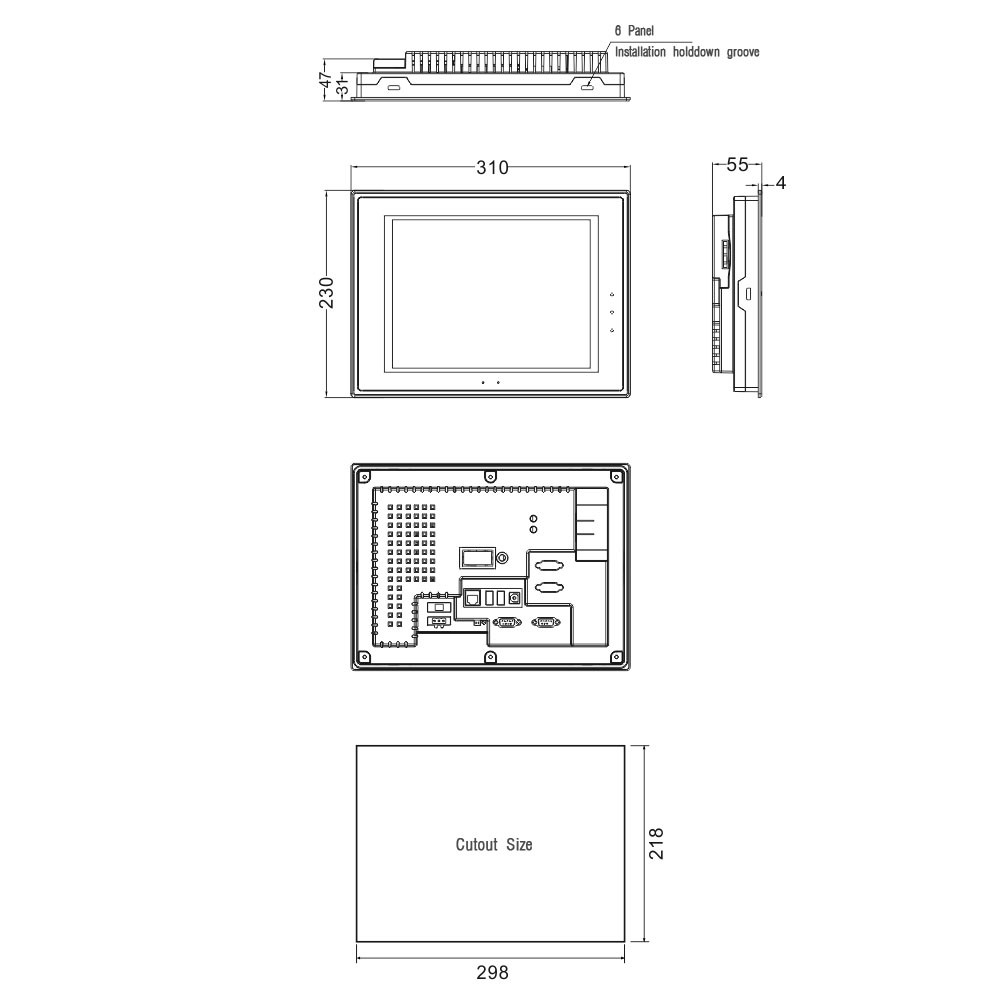

Dimensions (Unit:mm)
Structure specification
Shell color | Dark Gray |
Shell material | PC+ABS |
Dimensions(mm) | 310×230×50mm |
Cutout size(mm) | 298×218mm |
Weight | 2 Kg |
