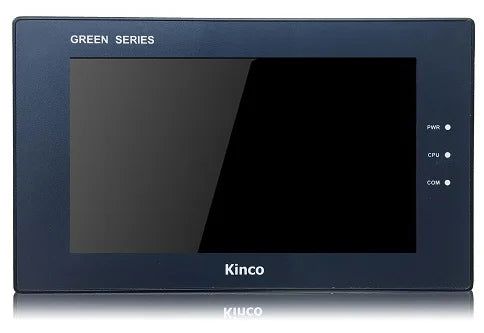

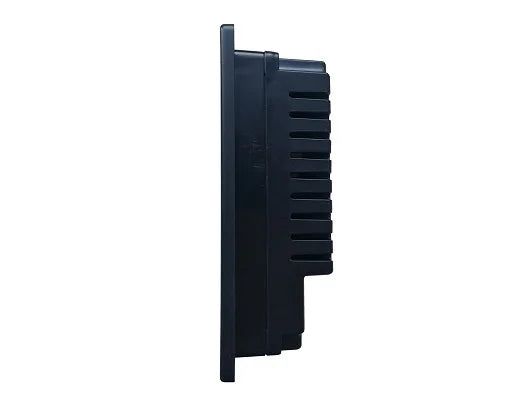

GH070, GH070E Kinco 7" TFT 800*480 HMI PANEL ,HAVE IN STOCK
Performance specification of GH070E
| Display | 7" TFT |
| Display area | 154.08(W)x85.92(H) |
| Resolution | 800*480 pixel |
| Color | 16.77 million |
| Display angle of view | 70/70/50/70(left/right/up/down) |
| Backlight | LED |
| Brightness | 400cd/m2 |
| Backlight life | >30000 hours |
| Touch Panel | 4 wire precision resistance network (surface hardness 4H) |
| Processor | ARM RISC 32Bit 792MHz |
| Memory | 128MB NAND Flash Memory+128MB DDR3 Memory |
| Expandable memory | 1 USB Host |
| RTC | Built-in real time clock |
| Printer port | USB Host/Serial port |
| Ethernet | 10/100MHz self-adaption |
| Program download | USB Slave/U disk/Ethernet |

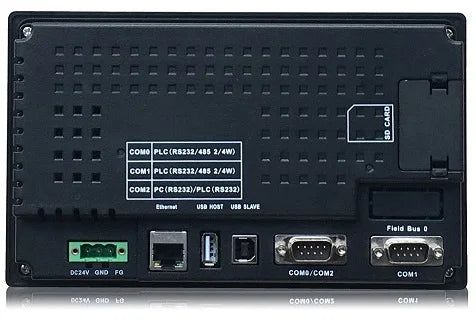

| COM port | COM0:RS232/RS485-2W/4W; COM1:RS232/RS485-2W/4W; COM2:RS232; COM3:RS485-2W Built-in isolation for all serial ports |
Environment specification
| Operating temperature | -10～55℃ |
| Operating humidity | 10～90% non-condensing |
| Storage temperature | -20～60℃ |
| Storage humidity | 10～90% non-condensing |
| Shockproof test | 10～25Hz (X, Y, Z direction, 2G, 30 minutes) |
| Cooling method | Natural air cooling |
Electrical specification
| Rated power | 5W @24VDC |
| Rated voltage | DC18V～DC28V |
| Power down allowe | <3ms |
| Insulation resistance | Greater than 50MΩ@ 500V DC |
| Dielectric strength test | 500V AC 1 minute |
Structure specification
| Shell material | engineering plastic |
| Dimensions(mm) | 207mm*125mm*46mm |
| Cutout size(mm) | 194mm*113mm |
| Weight | 0.6Kg |
Dimensions (Unit:mm)
We will tested this package before shipping !!!
