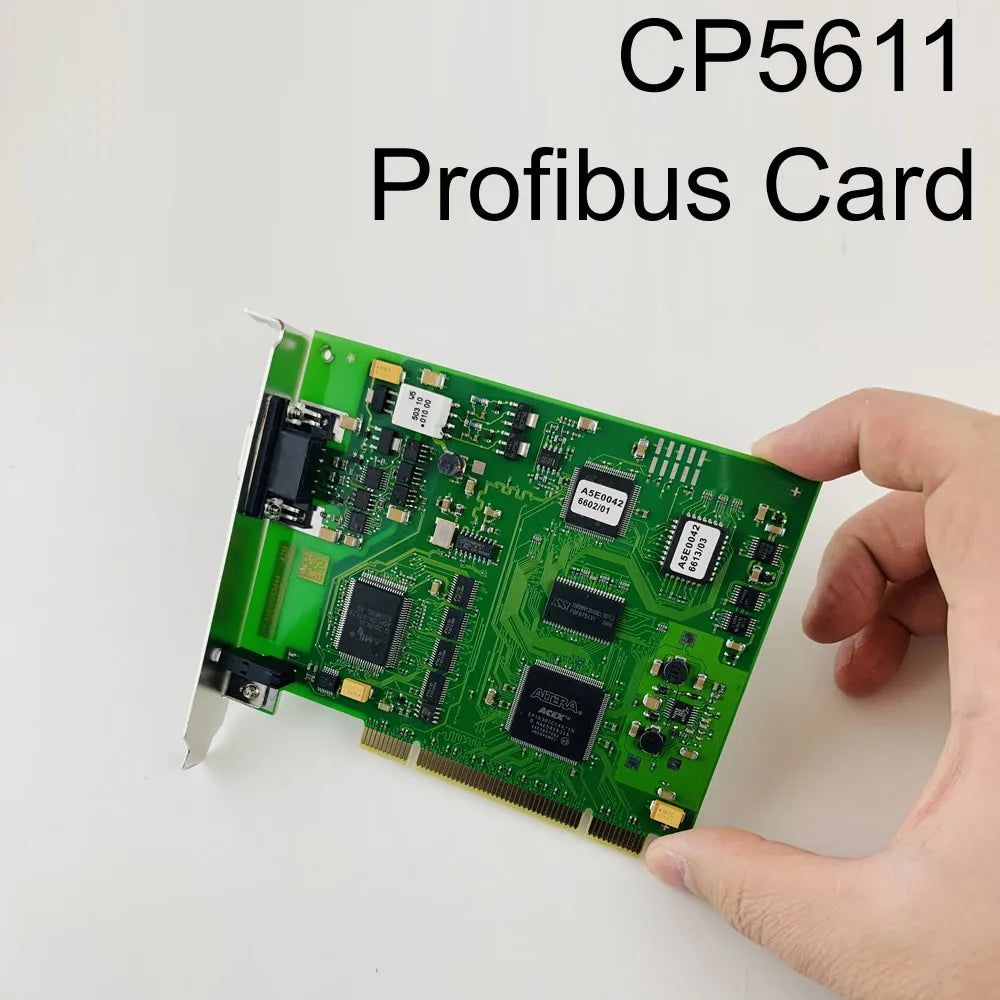

CP5611 PCI PROFIBUS/MPI/PPI communication card 6GK1 561-1AA00 for desktop 6GK1561-1AA00 6GK15611AA00,fast shipping

Please Note, this goods made by us, not original simatic products.

But it can communication with your PLC and HMI.

Profibus Communication work fine !

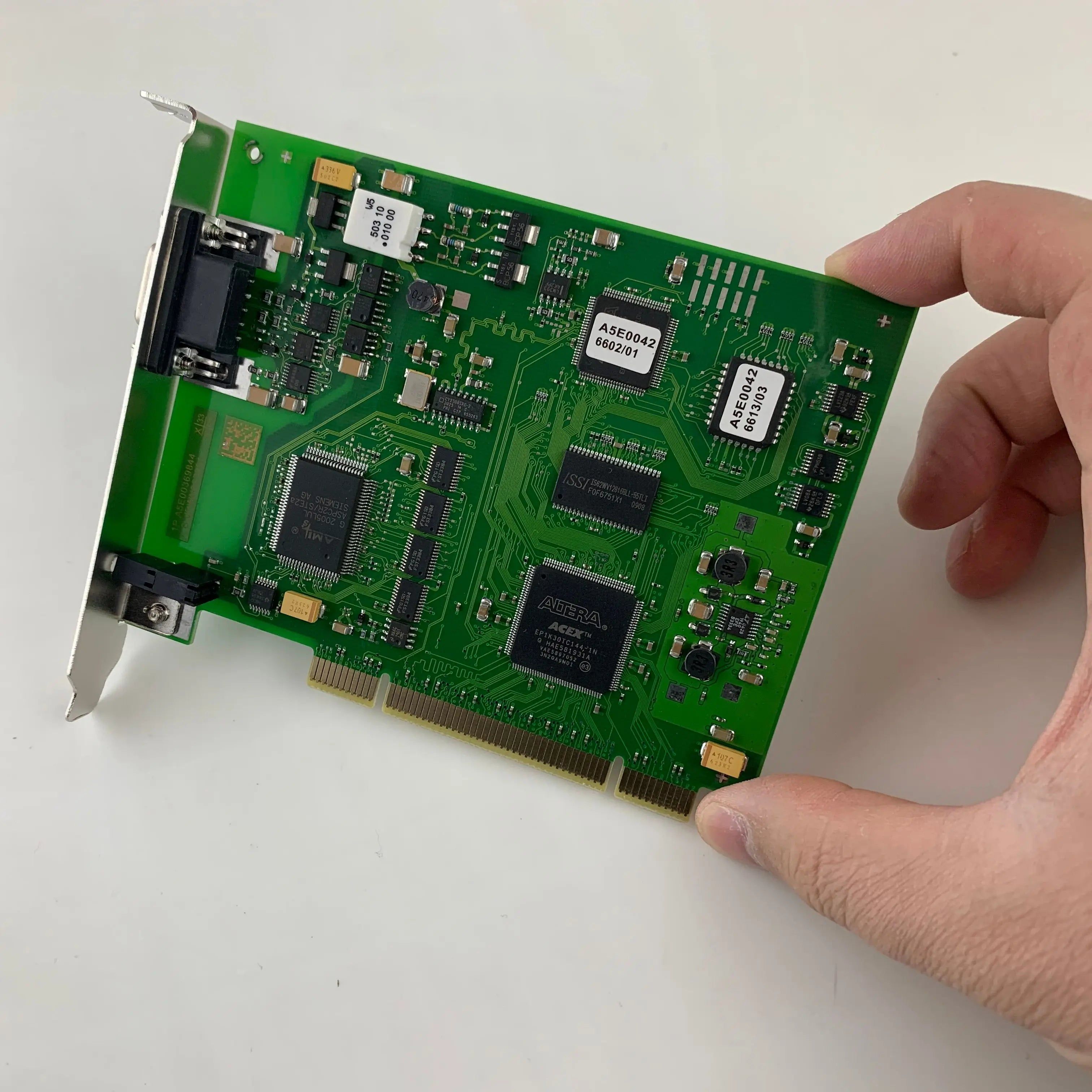

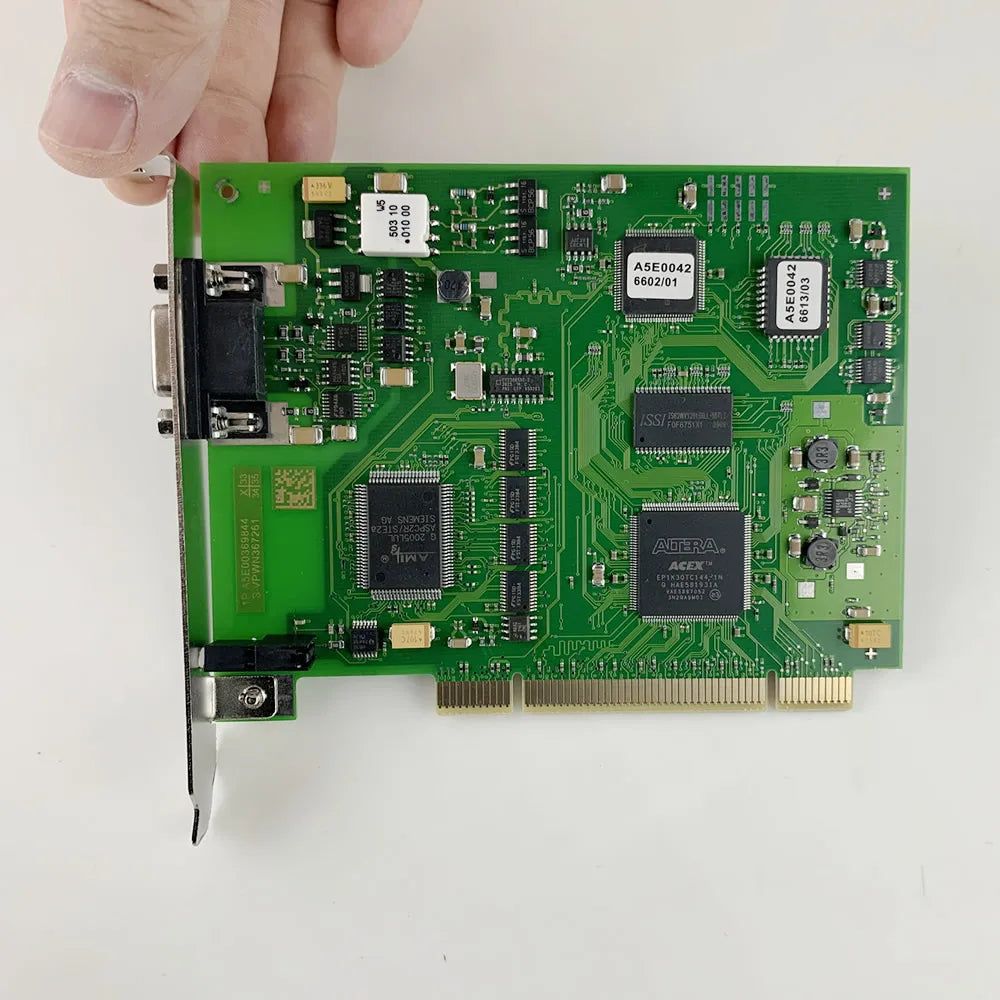

CP5611 communication card which is Anti-lightning and anti-surge, corresponding to the Siemens 6GK1561-1AA00, photoelectric isolation, and applied to desktop computer's PCI slots, to achieve the PROFIBUS DP / MPI / PPI communications between PC or PG and the SIMATIC network, communication rate is 9.6 Kbps~12Mbps.

Not made by Siemens,OEM product

Not including MPI extension cable for card communication,if you also need this,please also order this:

Overview:
CP5611 communication card for industrial applications for the isolated design, RS485 port in an increase of anti-lightning surge protection circuit and over-current protection, the use of on-chip industrial apply to a wide temperature range for the realization of PG or PC with SIMATIC Network between PROFIBUS DP/MPI/PPI communications connection.

• Communication services:

  PROFIBUS-DP master grade 1 and 2

  PROFIBUS-DP slave and SOFTNET-DP slave

  MPI/PPI communications
  PG/OP communication .

  SOFTNET-S7 and S7 for communications
  And SOFTNET-DP or SOFTNET-S7 for S5 compatible communications (FDL-based interface SEND / RECEIVE function)

• CP5611 apply to the following software:

  STEP7 V.52 and above

  SOFTNET-S7

  SOFTNET-DP
  SOFTNET-DP slave .

  COM PROFIVUS V3.3 and above

  STEP 7-Micro/WIN V3.1 and above

  ProTool, ProToo/Pro
  NCMPC

Technical specifications:

• Transfer rate: 9.6Kbps ~ 12Mbps, corresponding to the maximum distance communication standard in line with the PROFIBUS

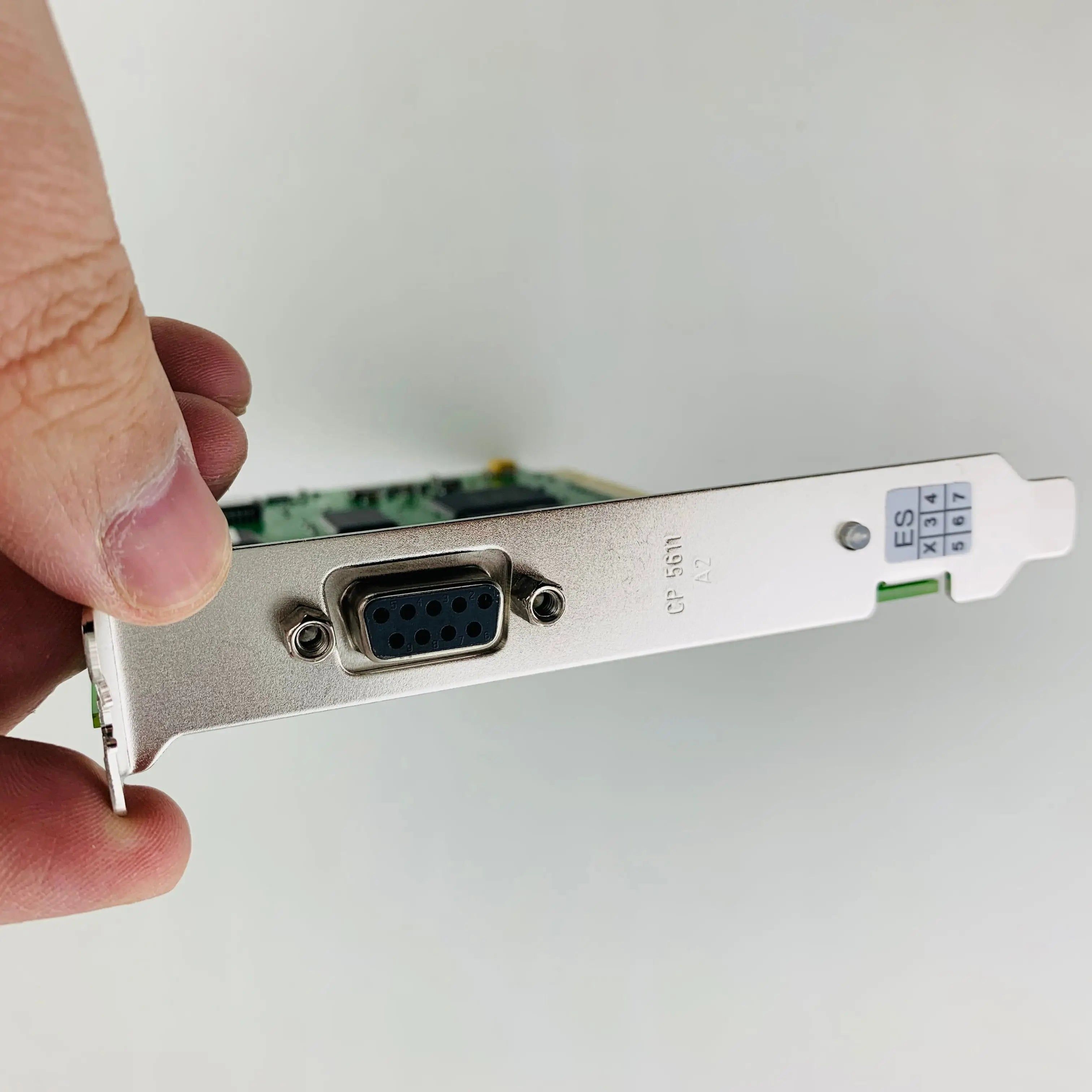

• Interface: connecting PROFIBUS/MPI/PPI, the isolation of the 9-pin Sub-D socket

• Isolation Voltage: 1000VDC

• RS485 port with anti-lightning surge protectors, repeatability surge capacity: Ipp = 100A (10/700us, 4KV)

• Standard: ITU-TK20/21, VDE 0433. ± 15KV ESD (ESD) protection

• Since the resumption of over-current protection: RS485 port can withstand up to 60V voltage caused by the sustained over-current

• Link PG/PC: PCI2.1 standard slot

• Standard voltage: +5 VDC

• Power: 2.0W

• Operating temperature: 0 ~ + 70

• Size (width × high) (mm): 102 × 130

• Weight: 100g
