A61L-0001-0095 D9CM-01A compatible LCD display 9 inch for CNC machine replace CRT monitor
This product is for industrial LCD monitors, used to replace the old CRT monitors
Fanuc Replacement LCD Display for Legacy
Fanuc A61L-0001-0095 RGB CRT Monitor
Toshiba D9CM-01A (D9CM01A)
Features:
8.4 inch SVGA Color TFT LCD with reliable LED Backlight
Designed For Fanuc 16, 18 and 20 Series Control Panels
Rugged Cold Roll Steel Open-Frame Chassis drops directly into 9" CRT mounting holes
Fanuc A61L-0001-0095 9 Inch CRT monitor Replacement
Toshiba D9CM-01A (D9CM01A) Legacy 9-inch CRT monitor Replacement
Hirose (Honda) 20 Pin input connector
TTL video Input meets Fanuc Series 16, 18, and 20 timing
High Brightness 450 Cd/M2 Typical
High Contrast 600:1 Typical
Universal Power Supply with VESA Power Management
Power Requirements: 100-240 VAC 50-60 Hz @ 1 Amp
Fanuc-CRT A61L-0001-0095 9" inch Color CRT Monitor, Fanuc 16, 18 and 20 Series Control system.

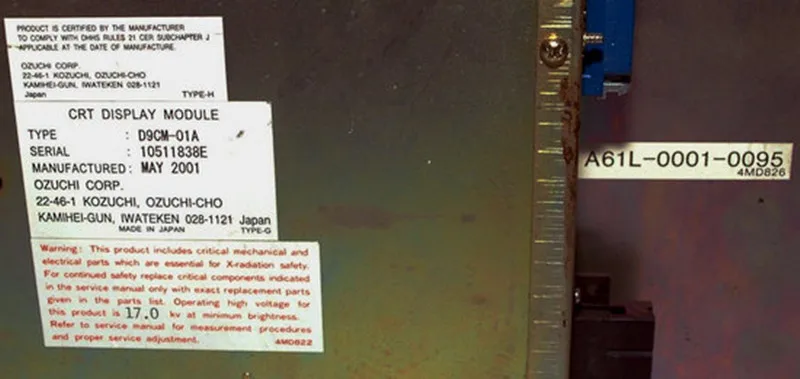

The Old CRT monitor A61L-0001-0095 as follows:
The replacement LCD display as follows:
Because of we improvement all the time, the above images may have a little difference with the actual image. We reserve the right to revise the picture. We will try to put the pictures of the latest, if any other questions, please feel free to contact us.
Our products all adopt imported industrial LCD panel and power supplies from companies such as SHARP & AUO to ensures that it has a long service life, low failure rate, suitable for working condition of continuous use of 24 hours, without daily maintenance, with exactly same mechanical size of the original hole site, and can quickly restore production as long as to plug in the signal interface and power interface. Compared with the original CRT monitor, LCD monitor has advantages of simple structure, lower power consumption, little daily breakdown, strong vibration resistance, strong electromagnetic interference resistance, simple maintenance, light weight, and easier to standardization, etc.
All models are of regular stock to ensure rapid delivery and some special use display can be customized.
