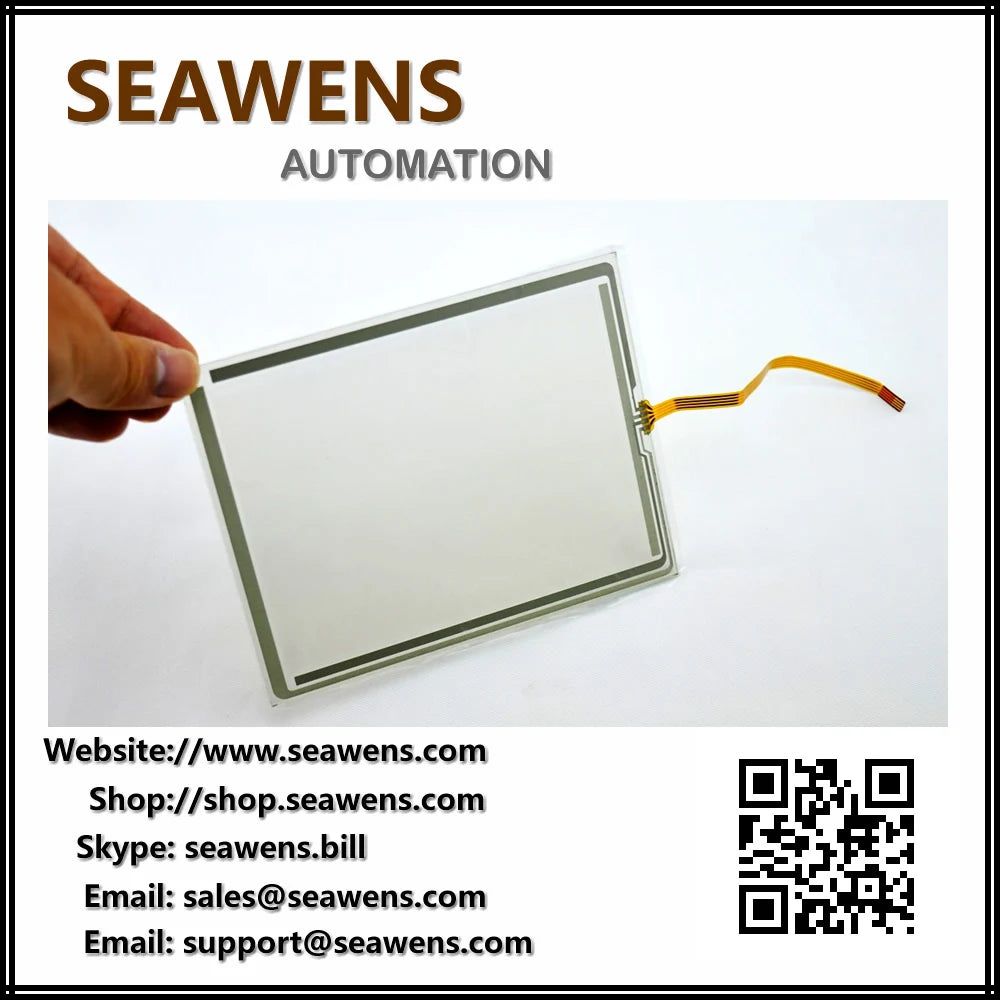

NEW! Touch Screen for MOBILE PANEL 177 DP repair !!!
Replace Models:
- 6AV6645-0AA01-0AX0
- 6AV6645-0AB01-0AX0
- 6AV6645-0AC01-0AX0
- 6AV6645-0BA01-0AX0
- 6AV6645-0BB01-0AX0
- 6AV6645-0BC01-0AX0
Have in STOCK!!!
Condition:
All product are new, working in perfect condition,Meet bad environment,No need change any shell and add any auxiliary to the HMI machine.
If you need more repair parts for Siemens MOBILE PANEL 177 DP, please check :
| Picture | Description | Address |
 | Keypad for Sinumerik HT8 | Buy It |
Description :
| Touch Screen for MOBILE PANEL 177 DP repair | |
| Size(inch) | 5.7inch |
| Outside (mm) | 136.45mm*109mm |
| V A (mm) | 121.65mm*92.4mm |
| A A (mm) | 118.65mm*90mm |
| FPC(mm)A | 100mm*1mm |
| PIN(mm)A | 4pin |
| Pitch | Pitch=1mm |
| Thickness | 1.4mm |
| Rated Voltage | DC 5V 1mA |
| Operating force | 60-150g R0.8 By pen |
| Connector Resistance | 20MΩ↑ @ DC 25V |
| Transmittance | >78% |
| Operating Temperature | -10° C ~ 60° C |
| Storage temperature | -20° C ~ 70° C |
| Input life | >1.000.000 times (Tip R0.8mm) |
| lineation test | >100.000 times (Tip R0.8mm) |
| Electrostatic Endurance | No abnormal appearance after 10kv, 100W, 250PF electrostatic used. |
| High temperature storage | 80, 40hr |
| Low temperature storage | -30, 40hr |
| High temperature high Humidity storage | 70,70%RH,120hr |
| Temperature Cycling | -20 — 70 (0.5hr each),10cycles |
