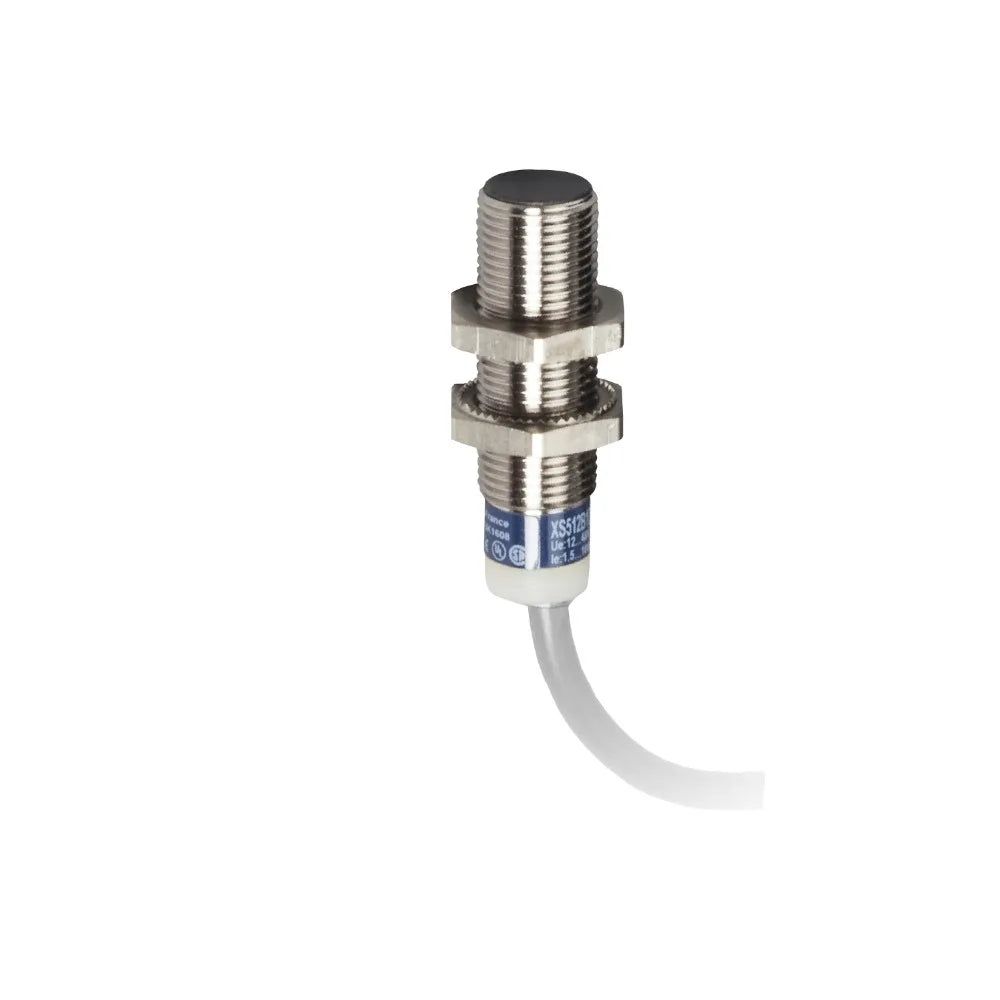

XS512B1PAL2,XS5-12B1PAL2 Inductive proximity sensor,
Inductive sensor XS5 M12 - L35mm - brass - Sn2mm - 12..24VDC - cable 2m
Main Characteristics
| range of product | OsiSense XS | |
|---|---|---|
| series name | General purpose | |
| sensor type | Inductive proximity sensor | |
| device application | - | |
| sensor name | XS5 | |
| sensor design | Cylindrical M12 | |
| size | 35 mm | |
| body type | Fixed | |
| detector flush mounting acceptance | Flush mountable | |
| material | Metal | |
| type of output signal | Discrete | |
| wiring technique | 3-wire | |
| [Sn] nominal sensing distance | 0.08 in (2 mm) | |
| discrete output function | 1 NO | |
| output circuit type | DC | |
| discrete output type | PNP | |
| electrical connection | Cable | |
| cable length | 6.56 ft (2 m) | |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection | |
| switching capacity in mA | <= 200 mA DC with overload and short-circuit protection | |
| IP degree of protection | IP68 double insulation conforming to IEC 60529 IP69K conforming to DIN 40050 |
Remarks:

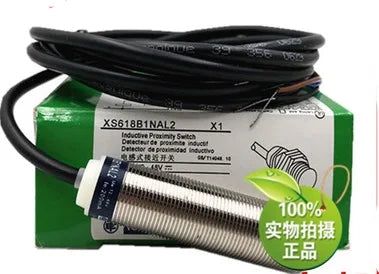

There are too many model numbers,and failed to upload the picture for every model, the Uploaded images for reference only。
If you need a picture for your specific model , please contact us for a picture
Dimensions Drawings
