Weinview Touch Screen 10inch HMI TK6102i v5wv with programming cable and Chinese software
Special Version
Operating systems:Embedded type
configuration software: EB8000V345_20100428_en
HMI certification:CE
Installation
xp /window 7 32 bit can be directly installed via automatically install driver Window 7 64 bit installed would be enforced to sign every time powering on
HMI port can communicate with most of the PLC ,in especial
Allen-Bradley, Omron ,Mitsubishi,Siemens ,LG,Modicon,Ge Fanuc SNP-X,Delta,Facon ,Liyan Ex Series,Matsushita ,Idec ,Keyence Kv Series ,Toshiba T Series , Koyo,Vigor Yokogawa Fa-M3,Parker Compax3, Saia Pcd S-Bus Mode ,Sew Eurodrive Movitrac
Baumuller Servo ,Heng Yuan Sensor and so on
Detailed Specifications
|
Monitor | Monitor | 10”TFT |
| Resolution(WxH dots) | 800x480 | |
| Brightness(cd/m2) | 300 | |
| Contrast | 500:1 | |
| Backlight type | LED | |
| Backlight service life | 30,000 hours | |
| Display colors | 65536 | |
| Touch Panel | Type | Four-wire analog resistance type |
| Storage | Flash RAM(MB) | 128 |
| DRAM | 64 | |
| Processor |
| 32 Bit RISU CPU 400MHz |
|
Communication Port | SD slot | none |
| USB host | none | |
| Mine USB downloading port | USB 2.0 x 1 | |
| Ethernet | none | |
| COM connectors | Com1: RS-232/RS-485 2w/4w, Com3: RS-485 2w | |
| Voice output port | none | |
| Calendar |
| Built-in |
| Electricity Supply | Input power | 24±20%VDC |
| Power dissipation | 350mA@24V | |
| Isolated power supply | Built-in | |
| Pressure-proof | 500 VAC(per min) | |
| Insulating resistance | Over 500MW at 500 VDC | |
| Quake-proof | 10 to 25Hz(Direction X,Y,Z 2G 30 mins) | |
| Specifications
| Sheathing material | Industrial plastics |
| Outside measurement WxHxD | 271 x 213 x 40mm | |
| Opening size(mm) | 192 x 138 | |
| Weight(kg) | About 1.3kg | |
| Operating Environment | Protection level | NEMA4 / IP65 |
| Storage Temperature | -200 ~ 600 (-40 ~ 1400F) | |
| Operating Temperature | 00 ~ 500C(320 ~ 1220F) | |
| Operating Humidity | 10% ~ 90%@ 400C(No condensation) | |
| CE Certification |
| EN 55022:2006,Class A, EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005 EN 55024:1998+A1:2001+A2:2003
|
| Software |
| EB8000 V4.42 simplified Chinese version or updated versions |
Product Features
| 10” 800 x 480 TFT LCD |
| Fanless cooling system |
| Built-in Storage device, RAM and calendar |
| IP65 panel protection level |
| LED backlight |
| USB Client download |
| Built-in isolated power protection supply |
| Com1 RS485 or Com3 RS485/2w, supporting MPI 187.5K.(it can’t be used both coms at the same time.) |

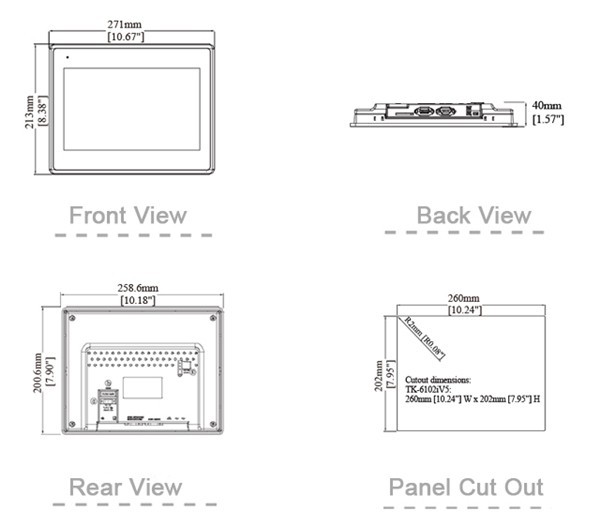

SIZE
