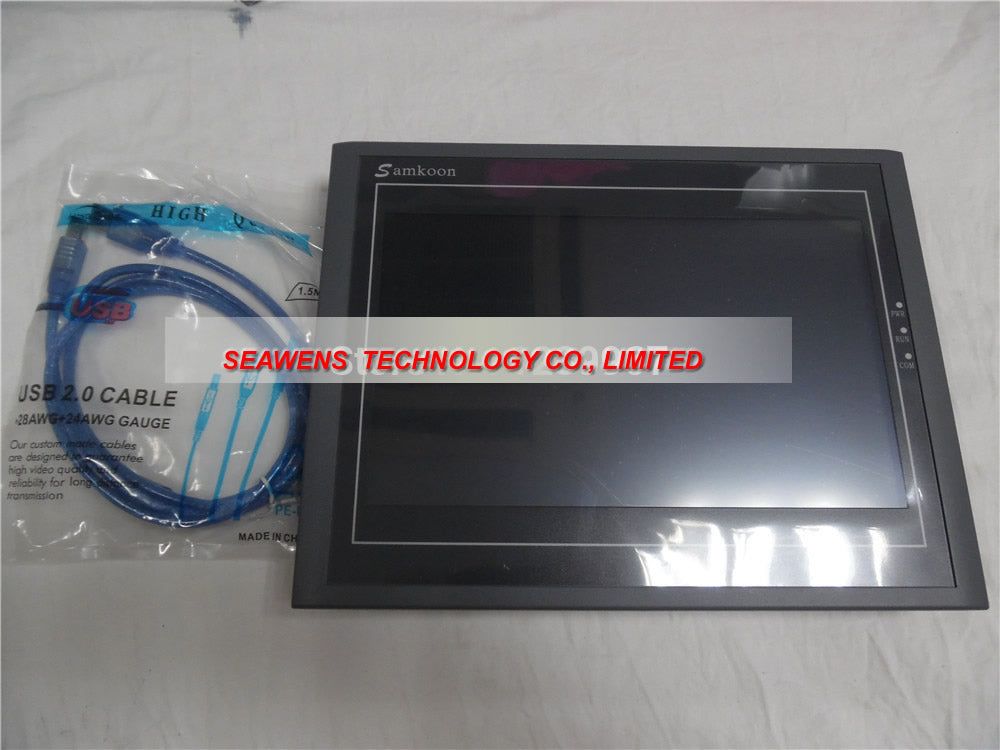

10.2 inch HMI touch Screen Samkoon SA-10.2A with programming cable and software
Samkoon touch Screen HMI SA-10.2A 800x480 10.2 inch 2 COM NEW Original
Product brief introduction
260,000 color, 2 COM(RS232,RS422,RS485) and one USB download port(USB Device)
Specification
| SA-10.2A Key Technical Parameters | |
| Model | SA-10.2A |
| Display Size | 10.2”(length : width=16:9) |
| Resolution | 800x 480 |
| Brightness | 450 cd/m2 |
| Contrast | 450 : 1 |
| color | 262, 144 color |
| Backlight | LED |
| Control panel | 4-wire high-precision electric resistance touch screen |
| COM | COM 1 (RS232, RS422, RS485) and COM2 (RS232, RS422, RS485) |
| USB download port USB Device | YES |
| USB port USB Host | None |
| Ethernet port | None |
| SD card | None |
| Storage | 128M FLASH + 128M SDRAM |
| CPU | 32-bit 500MHz RISC |
| Supply power | DC: 24V (±15%),15W |
| Power consumption | 6W |
| FCC compatibility | FCC, Class A |
| Pressure-proof test | 1000V AC / per minute |
| CE certification | EN55022 EN55024 |
| Operation temperature | -10~650 |
| Operation humidity | 10~90%RH( no condensation) |
| Shockproof degree | 10-25Hz( X Y Z dimension 2G/30 minutes) |
| Protection Level | IP65( front panel) |
| Curst material | Engineering plastic ABS + PC |
| External size | 275x 210x 44(mm) |
| Installed portiforium size | 259x201(mm) |
| weight | About 2kg |
| Configuration software | SamDraw 3.3 |
Software: Embedded type Linux
HMI certification: CE
configuration software: SamDraw3.3
HMI port can communicate with most of the PLC , in especial
Mitsubishi; Omron; Zhenghang; Yokogawa; Xinjie; Vigor; Techwayson; Tailing; Taian; Siemens; Nanda; Modicon; Modbus; Matsushita; LG; Koyo; Keyence; Inovance; IDEC; Hollysys; Hitachi; Haiwell; GE; Fuji; Fatek; Emerson; Delta; Allen-Bladley; AIBUS_master, etc
