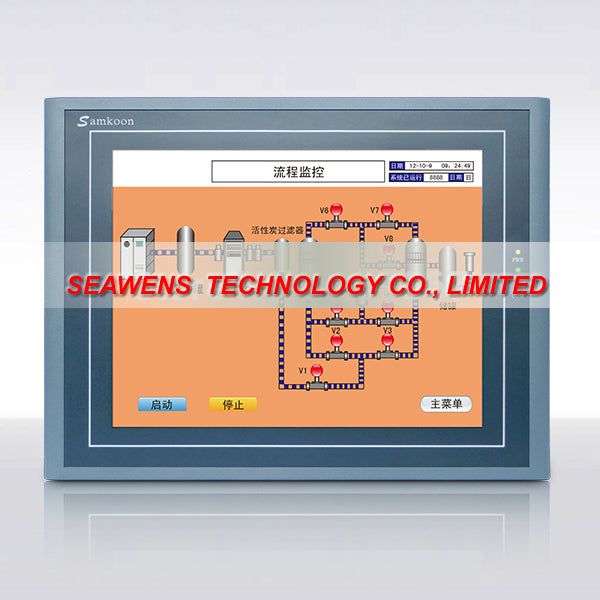

12.1 inch HMI touch Screen Samkoon SA-12.1A with programming cable and software
Product brief introduction
260,000 color, 2 COM(RS232,RS422,RS485) and one USB download port(USB Device)
Specification
| SA-5.7C Key Technical Parameters | |
| Model | SA-5.7C |
| Display Size | 5.7”(length : width=4:3) |
| Resolution | 320 x 240 |
| Brightness | 400 cd/m2 |
| Contrast | 400 : 1 |
| color | 262, 144 color |
| Backlight | LED |
| Control panel | 4-wire high-precision electric resistance touch screen |
| COM | COM 1 (RS232, RS422, RS485) and COM2 (RS232, RS422, RS485) |
| USB download port USB Device | YES |
| USB port USB Host | None |
| Ethernet port | None |
| SD card | None |
| Storage | 64M FLASH + 64M SDRAM |
| CPU | 32-bit 200MHz RISC |
| Supply power | DC: 24V (±15%),6W |
| Power consumption | 4W |
| FCC compatibility | FCC, Class A |
| Pressure-proof test | 1000V AC / per minute |
| CE certification | EN55022 EN55024 |
| Operation temperature | -10~650 |
| Operation humidity | 10~90%RH( no condensation) |
| Shockproof degree | 10-25Hz( X Y Z dimension 2G/30 minutes) |
| Protection Level | IP65( front panel) |
| Curst material | Engineering plastic ABS + PC |
| External size | 177x 140x 40 (mm) |
| Installed portiforium size | 163x133 (mm) |
| weight | About 0.8kg |
| Configuration software | SamDraw 3.3 |
Software: Embedded type Linux
HMI certification: CE
Configuration software: SamDraw3.3 (free English versions)
The communication cable, which connects Human Interface and PLC, isn’t provided for free. If needed, please inform us of your PLC model, we will offer a best price.
