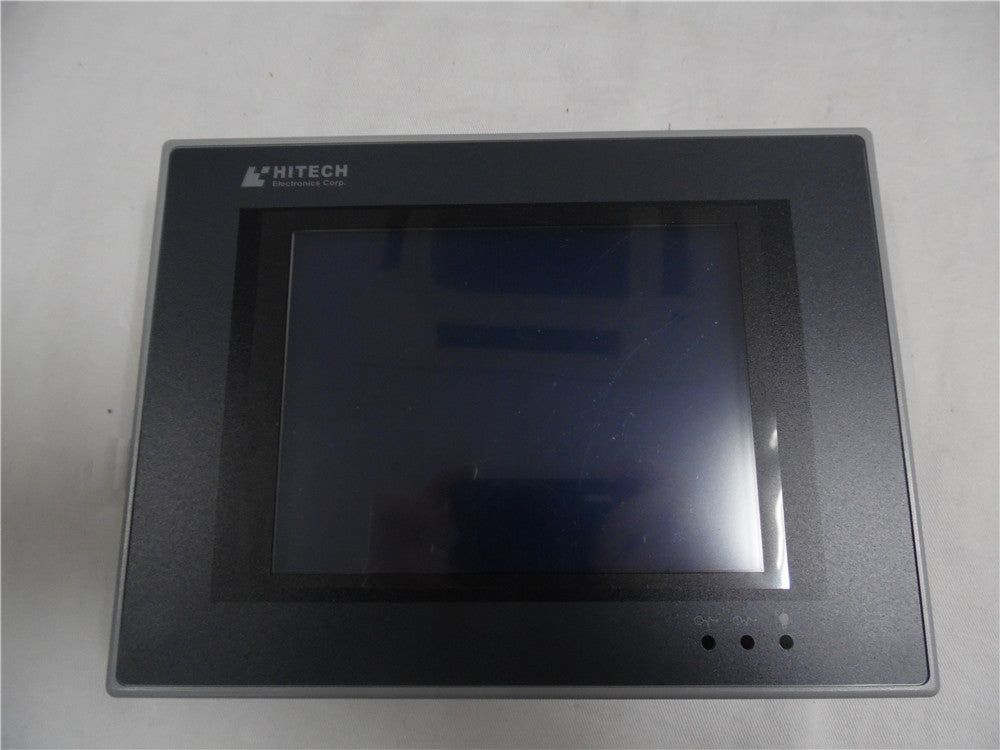

PWS5610S-S 5.7 inch HITECH HMI Touch Screen panel Human Machine Interface NEW in box
Touch Screen HITECH HMI PWS5610S-S 320X240 5.7 inch 1 COM Original brand new
Features
Configuration software for the PWS-terminal
Screen management
Cross references
All Windows fonts supported
Off-line and on-line simulation
Animated graphics
Ladder or macro functionality
Communication drivers
Multi-language support
Multi-channel communication
File protection
| Item | PWS5610S-S |
| Display Type | Color TFT LCD |
| Display Color | 16 (shades of blue) |
| Display Size | 5.7” (diagonal); display area is 115.2 X 86.4 mm |
| Number of Pixels | 320x240; Number of 8x8 characters displayable is 40x30. |
| Display Adjustment | Via touch panel |
| Back Light | LED; Lifetime 30,000 hours |
| Touch Screen | Analog |
| Input Power | 24VDC±15% ; Under 8W |
| Flash ROM | 2M bytes |
| RAM | 512 K bytes |
| CPU | 32 bits RISC |
| Battery Backed Memory | 256 K byte |
| RTC 1 | Yes |

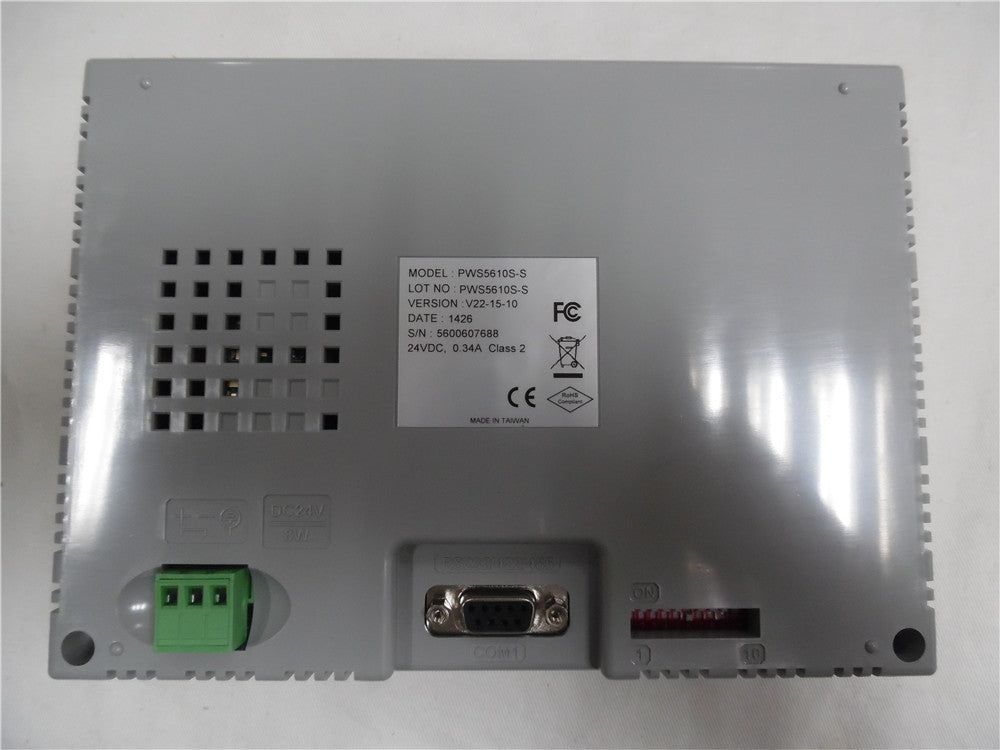

| COM1 | 9-pin female: RS232/RS422/RS485 without RTS/CTS |
| Front Panel Seal | IP65 |
| Ambient Temperature | 0~50°C |
| Storage Temperature | -10~60°C |
| Ambient Humidity | 10-90%RH(0~40° C),10-60%RH(41-50° C),non-condensing |
| Vibration Endurance | 0.5mm displacement, 10-55Hz, 2 hours per X, Y, and Z-axis directions |
| Shock Endurance | 10G, 11ms three times in each direction of X, Y, and Z axes |
| CE | EN61000-6-4,EN61000-6-2 |
| External Dimensions (mm) | 195.0(W) x 145.0(H) x 40.2(D) |
| Cut-out Dimensions (mm) | 185.8 x 135.8 |
| Weight | 0.55 Kg |
| Cooling | Natural cooling |
Operating system: HITECH SYSTEM
HMI software: ADP V6.7.0 Build193
Certificate: CE; UL; FCC, etc .
HITECH HMI port can communicate with most of the PLC , in especial
ABB;Allen-Bradley Control Logix/DF1/DH485/SLC/PLC5 Ethernet/MicroLogix Ethernet; Altus; Animatics SmartMotor; Beckhoff ADS; Cognex; CTC Serial Binary; Delta DVP; Emerson Modbus Master; Fatek Facon; GE Fanuc Ethernet/SNPX; Giddings&Lewis Motion Control Serial; IAI XSel; IDEC Micro; KEB COMBIERT; Keyence KV-Series; Koyo DirectNET/K-Sequence; Lenze LECOMA/B ; LS Industrial Systems/Glota; Mitsubishi Alpha2/A-Series(C24)/ A-Series(CPU)/ A-Series(E71)/Freqrol FR-A PLC/FX Serial / FX Serial ADP/BD / FX 3U ethernet / MC Protocol /MR-J2/MR-J3-T/QnA/Qnn Serial / QnA/Qnn-Serial (C24) ; Modbus Master RTU/SACII/Modbus SlaveRTU/TCP; NMEA 0813; Schneider TSX Uni-Telway; SIEMENS S7 MPI/ISO Over TCP/IP/MPI Direct/S7 200 PPI/TI500/S5 PG/AS511; MAGO Modbus TCP ; Vigor ; Yamaha ; YASKAWA ;
