Package list:
1X HMI
1X Free Programming Cable (Connect HMI and Computer)
(TIPS: If you need cable for HMI and PLC communication, isn't provided for free. If you need, Please tell us t the brand and model of your PLC, we will provide you with the best price.)
Product parameters:

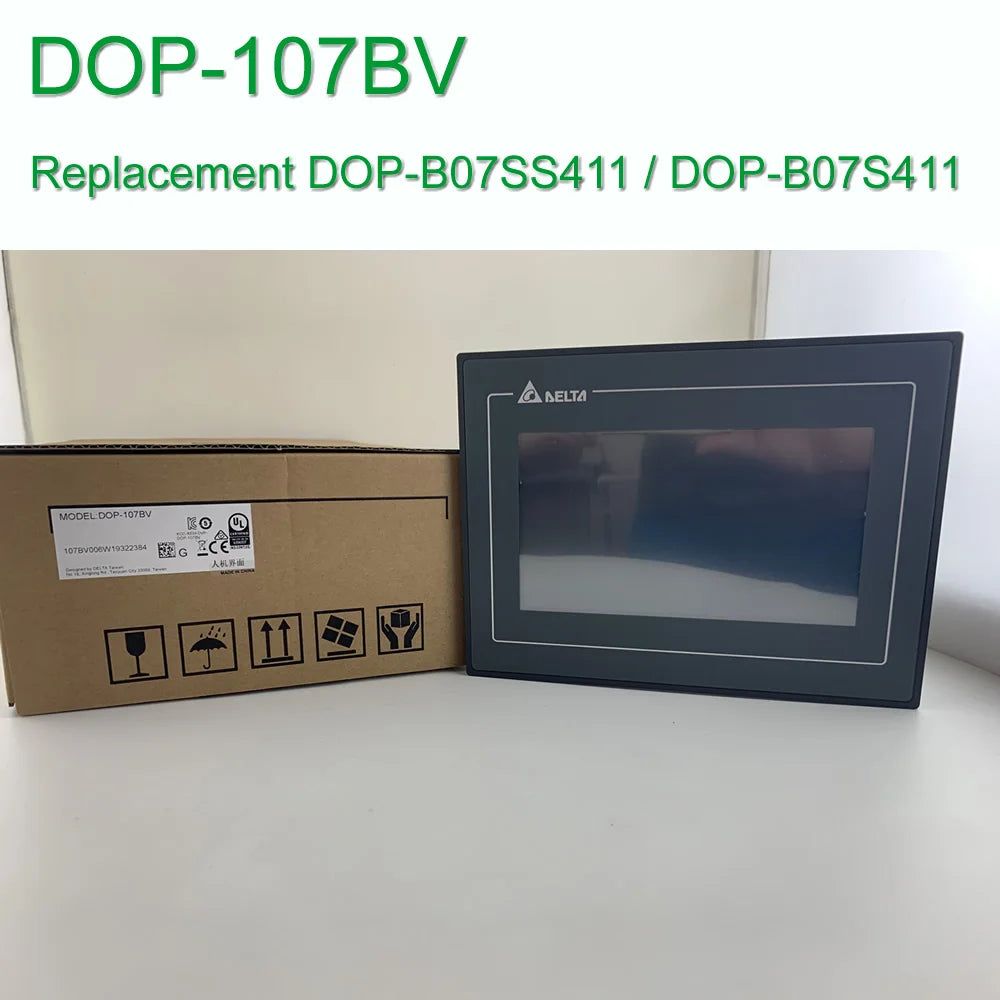

Model: DOP-107BV
Display: 7" TFT LCD
Resolution (Pixels): 800 x 480
MCU: ARM Cortex-A8 (800MHz)
Flash ROM (Bytes): 256MB
RAM (Bytes): 256MB
Ethernet Interface: None

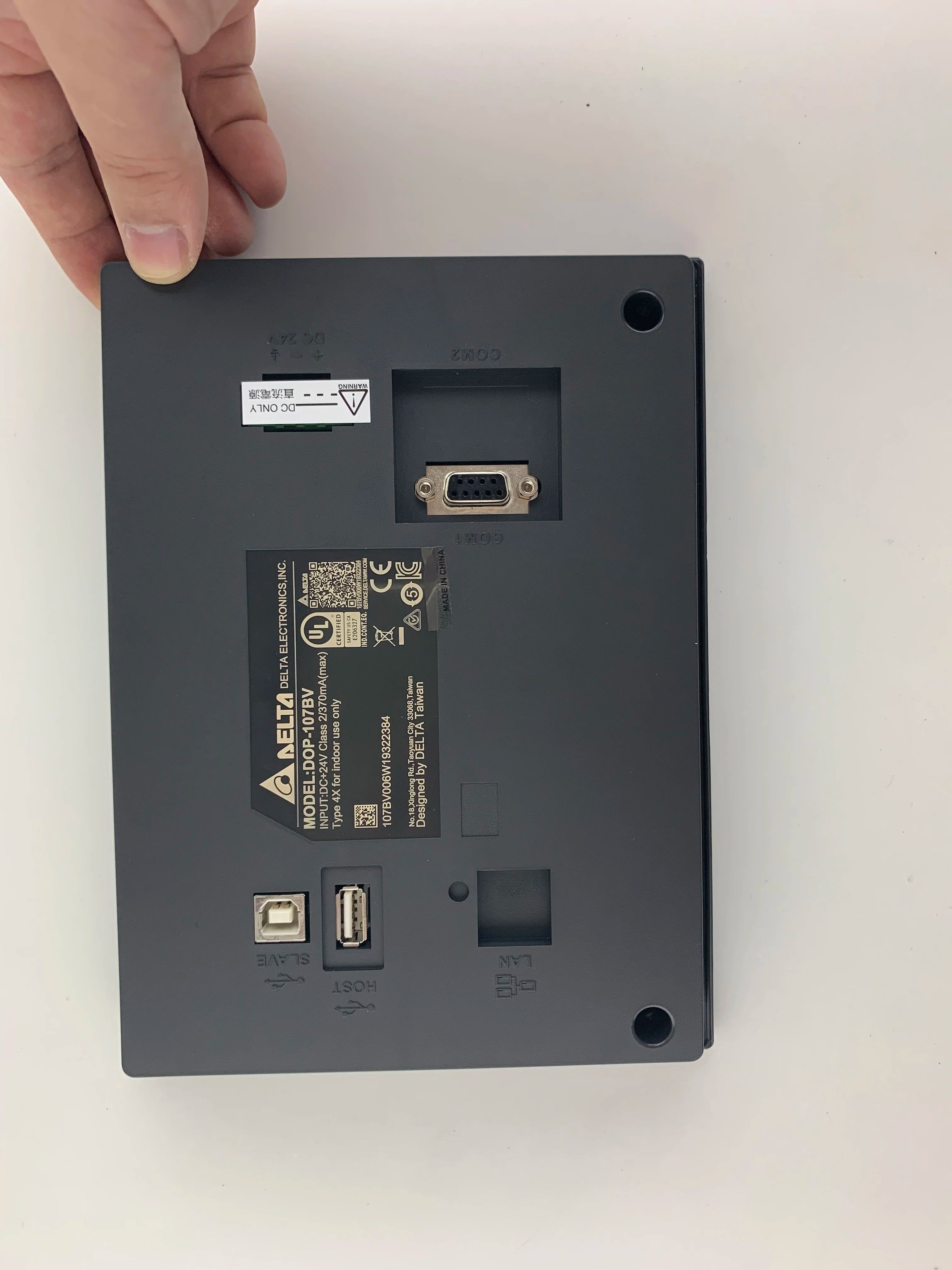

USB: 1 USB Slave Ver 2.0 / 1 USB Host Ver 2.0
Serial COM Port:
COM1: RS-232 (supports hardware flow
control) / RS-485 ;
COM2: RS-422 / RS-485
RTC: Built-in
Certification: CE / UL
Waterproof Degree: IP65 / NEMA4
Operation Voltage: DC24V (please use isolated power supply)
Voltage Endurance:AC500V for 1 minute (between charging (DC24V terminal and FG terminals)
Backup Battery: 3V lithium battery CR2032 x 1
Backup Battery Life: It depends on the temperature used and the conditions of usage, about 3 years or more at 25 degree.
