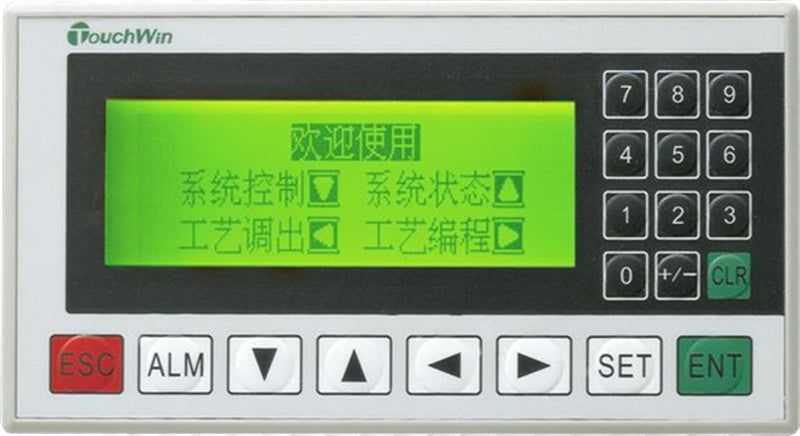

Operate Panel HMI OP320-A 3.7" 192x64 Adjustable brightness Yellow Green STN XINJE OP Text Display New in box with OP cable
OP320-A
Product description
- 3.7 inches screen, 20 keys
- Supporting ample PLCs
- With password protection feature, Built-in Clock (parts are optional)
- Dynamically display text
- Keys can be defined as function keys, and also be replaceable as machine keys of the control board.
- Backlight STN LCD display
General Specifications
| Display | color | Yellow-Green STN |
| Service life | Over20,000 hours, 250C of environment temperature, 24 hours operating | |
| Resolution | 192*64 | |
| Brightness | regulation resistance tunable | |
| Word enactment | Chinese simplified/complex, English(24charaters X 4 lines, meaning 12 Chinese words X 4 lines) | |
| Character size | Raster font and Vector font | |
| Keys | 20 | |
| Storage | display | 64KB FALSHROM |
| Data | 1KB SRAM | |
| Ports | Download port | RS232 |
| Communication port | OP320-A:RS232/RS422;OP320-A-S:RS232/RS485;OP320-A-N:RS232 |
Electrical Specifications
| Electrical specification | Input Voltage | DC24V |
| Voltage range | DC22V-DC26V | |
| Current sinking | <140mA | |
| Allowing momentary electric power shutdown | <10ms(less than one second in reality) | |
| Reactance voltage shock | AC1000V,10mA,less than one minute(between the signal and the earth) | |
| Insulating resistance | DC500V,>10MΩ(between the signal and the earth) | |
| Environment | Operating temperature | 0~50 degree centigrade |
| Storage temperature | -20~60 degree centigrade | |
| Operating Humidity | 10%RH~90%RH(No Condensation) | |
| Capacity of resisting disturbance | Disturbance voltage:1500Vp-p Repetition interval:1us Lasting time:one minute | |
| Air | Non-corrosive gases | |
| Structure | Cooling ways | Natural-draft |
| Protection level | IP65 | |
| External size(mm) | 172.0*94.0*30.0 | |
| Panel Cut out size (mm) | 163.0*85.0 |

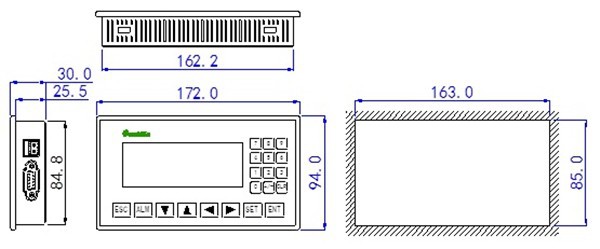

External Size (mm)
Configuration software: (free English versions)
| OP Hardware version | Suitable for software version |
| V3.6 | V3.6 |
| V4.0-V7.0(NOT IN 7.0) | V6.5z |
| V7.0-V8.0 | V8.0n |
OP series text display does not support the program uploading.
The communication cable, which connects Text Panel and PLC, isn’t provided for free. If needed, please inform us of your PLC model, we will offer a best price.
OP320-A and Op320-A-S Text Panel can just communicate with siemens.
