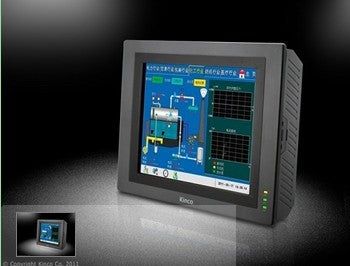

12.1 inch Kinco HMI touch screen panel MT4620TE Ethernet with programming Cable&Software
MT4620TE
The HMI MT4620TE is available, if need other choices, contact us directly.
Configuration software: Kinco HMIware v2.2 (free English versions)
HMI language: English, Korean Chinese Russian
HMI certification: CE
Only one programming cable is available, if you need communication cable, please inform us of your PLC model, We will provide the best service and quote the best price to you.
Kinco HMI can communicate with most of the equipment ,in especial
ABB, AB, ACS~Tech80 motion Controller, ADAM, AysjNet, BACnet MS/TP, Baldor NextMove ES, Barcode,Baumuller, Bosch Rexroth KVFC+, Bosch Rexroth Ethernet, CANOpen Node Slave, Cimon, Danfoss, Delta, ENDA, Emerson NetWork Power, Epower, FATEk, Fuji, GE, Haiwell, HanG, Hitachi Inverter, Hollysys, Huada HD~JZ06, IDEC, Inovance, Invt, KDN, Kinco PLC, Kinco EB~MOD2P~01, Kinco Servo Series, Kinco Master and Kinco Slave, Keyence, Koyo, KTC Srdlink, KYL Slave, LS(LG), LUST, Memory map, Mikom, Millenium3, Mitsubishi, Mks, Modbus, MODROL, OMRON, OPTO 22, Panasonic, Parker Automation, PMAC, Power~one AuRORA Wind Inverter, Profibus DP Slave, RF~IC, RKC Instrument INC, Saia~Burgess, Sailsors D9, Schneider, SHIMADEN Fp33, Siemens, Sinocon Scln, TAIAN, TMCM_303, XINJE, TOLEDO DLoadCell, TRIo, Vigoe, XIlin EH600, Yamatake, Yaskawa, Yokogawa, YUDian AI, ZIguang Ethernet.
General Feature:
Display:12.1″TFT
Color:65536 Colors
Memory:1Gbit HAND FLASH + 64M DDR2-667
| Model | MT4620TE |
| Performance specification | |
| Display | 12.1" TFT |
| Resolution | 800*600 |
| Color | 65536 |
| Backlight | LED |
| Brightness | 450cd/m2 |
| Backlight Life | 50000 Hours |
| Touch Panel | 4-Wire Precision Resistance Network |
| Processor | 800MHz 32Bit-RISC |
| Memory | 1Gbit NAND Flash + 64M DDR2-667 |
| U Disk | 1USB HOST |
| SD Card | 1 SD Card |
| Recipe Memory & RTC | 256KB + RTC |
| Printer Port | USB/Serial Port |
| Ethernet | Support |
| Program Download | USB SLAVE/Serial Port/Ethernet Port |
| COM Port | COM0:RS232/RS485-2/RS485-4, COM1:RS232/RS485-2/RS485-4, COM2:RS232 |
| Electrical Specification | |
| Rated Power | 10W |
| Rated Voltage | DC24V |
| Input Range | 21~28VDC |
| Power Down Allowed | <5ms |
| Insulation Resistance | Greater than 50Mohm@ 500V DC |
| Dielectric Strength Test | 500 VAC 1 Minute |
| Structure Specification | |
| Shell Color | Cold Gray |
| Shell Material | ABS |
| Dimensions(mm) | 350×260×54mm |
| Cutout Size(mm) | 340×250 mm |
| Weight | 4.4 Kg |
| Environment Specification | |
| Operating Temperature | -10~55centigrade degree |
| Operating Humidity | 10~90% Non-Condensing |
| Storage Temperature | -20~60centigrade degree |
| Storage Humidity | 10~90% Non-Condensing |
| Shockproof Test | 10~25Hz (X, Y, Z Direction, 2G, 30 Minutes) |
| Cooling Method | Natural Air Cooling |
| Certification | |
| Degree of Protection | IP65 (Front Panel) |
| CE Certification | Comply with EN61000-6-2:2005 and EN61000-6-4:2007Standards |
| FCC Compatibility | Complies with FCC Class A |
