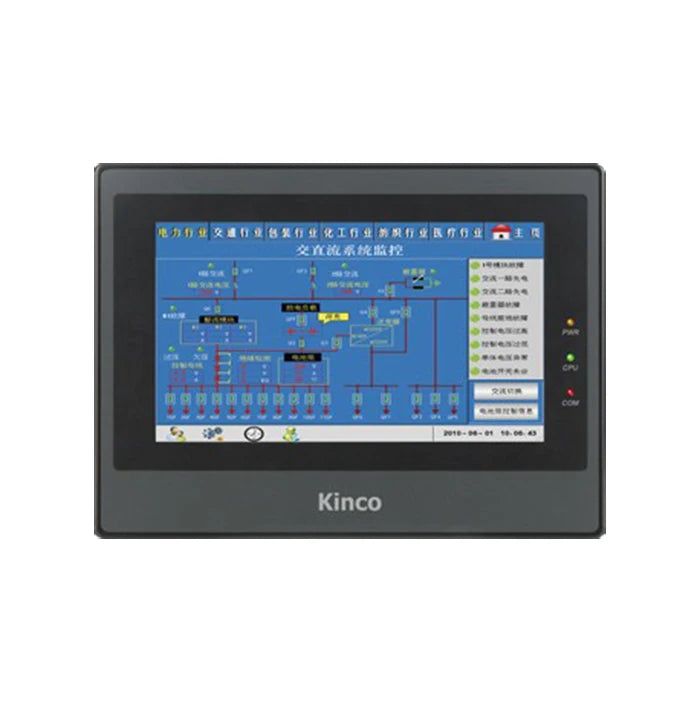

7 inch Kinco HMI touch screen panel MT4414TE-CAN Ethernet with programming Cable&Software
MT4414TE-CAN
The HMI MT4414TE-CAN is available, if need other choices, contact us directly. We can also supply MT4404T, MT4424TE, MT4414T, MT4414TE.
Configuration software: Kinco HMIware v2.2 (free English versions)
HMI language: English, Korean Chinese Russian
HMI certification: CE
Only one programming cable is available, if you need communication cable, please inform us of your PLC model, We will provide the best service and quote the best price to you.
Kinco HMI can communicate with most of the equipment ,in especial
General Feature:
Display:7″16:9 TFT
Color:65536 Colors
Memory:128M FLASH + 64M SDRAM
Model | MT4414T | MT4414TE | MT4414TE-CAN |
Performance specification | |||
Display | 7" 16:9 TFT | ||
Resolution | 800*480 | ||
Color | 65536 | ||
Backlight | LED | ||
Brightness | 300cd/m2 | ||
Backlight life | 50000 hours | ||
Touch Panel | 4-wire precision resistance network | ||
Processor | 32-bit 400MHz RISC | 32-bit 800MHz RISC | |
Memory | 128M FLASH + 64M SDRAM | ||
U Disk | None | 1 USB host | |
SD Card | None | ||
Recipe memory & RTC | 512KB + RTC | ||
Printer port | Serial port | Serial port/USB port | |
Ethernet | None | Support | |
Program download | USB SLAVE/Serial port | USB SLAVE/Serial port/Ethernet port | |
COM port | COM0:RS232/RS485-2/RS485-4,COM2:RS232 | ||
Expansion Port | None | CANopen | |
Software | EV5000 V1.6 | ||
Electrical specification | |||
Rated power | 4W | ||
Rated voltage | DC24V | ||
Input range | 12~28VDC | ||
Power down allowed | <3ms | ||
Insulation resistance | Greater than 50Mohm@ 500V DC | ||
Dielectric strength test | 500 VAC 1 minute | ||
Structure specification | |||
Shell color | Black | ||
Shell material | ABS | ||
Dimensions(mm) | 204×150×37mm | ||
Cutout size(mm) | 192×138mm | ||
Weight | 0.75 Kg | ||
Environment specification | |||
Operating temperature | 0~45centigrade degree | ||
Operating humidity | 10~90% non-condensing | ||
Storage temperature | -10~60centigrade degree | ||
Storage humidity | 10~90% non-condensing | ||
Shockproof test | 10~25Hz (X, Y, Z direction, 2G, 30 minutes) | ||
Cooling method | Natural air cooling | ||
Certification | |||
Degree of protection | IP65 (front panel) | ||
CE certification | Comply with EN61000-6-2:2005 and EN61000-6-4:2007standards | ||
FCC compatibility | Complies with FCC Class A | ||
