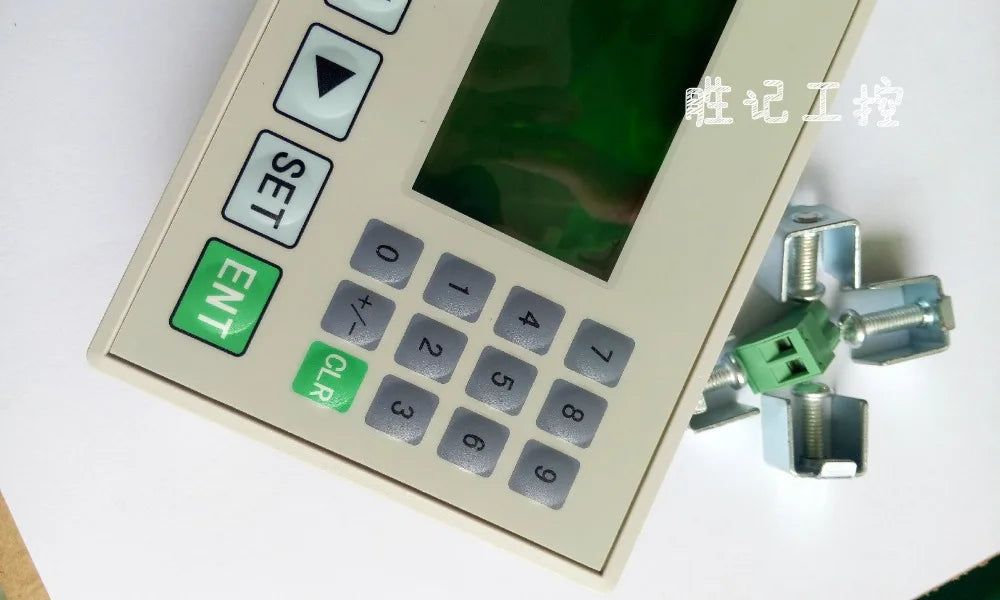

MD204L 4.3"STN 192x64 Yellow Green LED Nontouch Kinco Text Panel New with Op Cable
MD204L
Technical Parameters
| Model | MD204L |
| Display | 4.3"FSTN |
| Resolution | 192 x64 Pixel(Supporting Display of 4 Lines 12 Chinese Characters) |
| LCM life time | Greater than 50,000 Hours at 252 65±10%RH |
| Brightness | 60 cd/m⊃2; |
| Color | Monochromatic |
| Contrast | Adjustable by Potentiometer |
| Backlight | Long Service Life Yellow / Green LED |
| CPU | 8-bit Processor |
| Memory | 64KB Flash ROM |
| COM port | COM1: PC RS232 & PLC RS485/422 & PLC RS232 |
| Real-time clock | Optional |
| Function key | 20 Keys, Customizable(Including 12 Numeric Input Keys) |
| Printer port | N/A |
| Allowable power failure | Within 20ms |
| Power supply | 12~24 VDC ±10%<150mA 24VDC |
| Interference immunity test | Voltage 1500Vp-p, Pulse cycle 1us, Duration 1s |
| Dielectric strength | 500V AC (1 min) |
| Isolation resistance | Exceed 10M at 500V DC |
| Vibration endurance | 10 to 25 Hz(x, y, z Direction, 2G, 30 Minutes) |
| Protection class | IP65 Front Panel |
| Operating temperature | 0~50 °C |
| Operating humidity | 20~90 % RH (non-condensing) |
| Storage temperature | -20 °C~70 °C |
| Enclosure | Engineering Plastic ABS + PC |
| Dimensions(W x H x D) | 172 × 95 × 30mm |
| Display size(W x H) | 101 × 36 mm |
| Panel cutout dimension | 165 × 86mm |
| Cooling method | Natural Air Cooling |
| Weight | 0.3 Kg |
Electric Specification
| Input Voltage | DC12V-DC24V |
| Power Consume | 4W (TYP2.0W) |
| Max. Power Cut Time | 20ms |
| Max. Voltage | AC1000V-10mA 1min.(between signal and GND) |
| Insulative Resistance | DC500V-about 10Mohm (between signal and GND) |
Ambient Requirement
| Operation Temperature | 0~50 degree |
| Storage Temperature | -10~60 degree |
| Ambient Moisture | 20~85%(no condensation) |
| Vibration Resistance | 10~25Hz(Max. 2G for 30 min. in any of the X,Y,Z axis) |
| Interference Resistance | Voltage Noise: 1000Vp-p |
| Atmosphere | No corrosive gas |
| Protection Structure | IP65F |
| MD204L/214L/224L configuration software:TP200_V4.7.14(free English versions) |
| MD304L configuration software:TP300_V2.0.5(free English versions) MD Series Text Panel can communicate with most of the PLC, in especial Siemens S7-200, Modbus RTU, Mitsubishi FX1S FX2N FX3U, Omron CPM/CQM/CP1H, Panasonic FPM/FP1/FP0, KOYO S, Schneider Micro/Neza/Twido, Fatek MU/MA, LG Master-K Cnet, LG ModBUS, Detla DVP, AB_DF1, Modbus ASCII, SAIA S-BUS, LG Master-k CPU, Modbus RTU Extend, Emerson Server, VIGOR, KEYENCE KV1000, Hollysys G3, HITACHi, TAIAN TP03,KInco, IDEC. |
Functions
MD204L is a Human-Machine Interface that is used with many kinds of PLC (or the other intelligent controllers with communication ports). With MD204L, both the values of the PLC inner registers and the relays status of PLC can be monitored or changed through texts or LEDs. So the operation of the machines or the devices is more easy and convenient.
