| LQ10D213-RP LCD Panel Compatible for LQ10D213 used on TSK A-PM-90A machine NEW We have developed a complete replacement of the whole liquid crystal module LQ10D213-K, installation and installation exactly the same as the original model, LCD screen with the now popular newest TFT true color screen, color, contrast, viewing angle display is far better than the original results, quality warranty for one year LQ10D213-RP LCD Function LCD screen LQ10D213-RP is a specially designed to replace discontinued TSK A-PM-90A the probes on stage with the the Sharp LQ10D213 LCD screen. The use of the signal of the input image of 640x400 resolution size is enlarged, the display on the LCD screen of the high resolution design principles. The LQ10D213-RP uses the same interface design and Sharp LQ10D213, the size of the display screen is also consistent, and mounting holes the position size and Sharp LQ10D213, also entirely consistent. Please note this screen is only used on TSK A-PM-90A, or the panel will be broken during using. 1.Main parameters: Accept signals: 640X400, 60Hz Display size: 211.35mmX 131.97mm (the Sharp LQ10D213 the display size 211.2mmX132mm) Power consumption: 5V 0.2A, 12V 0.25A Signal Interface: 24Pin, Pitch 2.0mm 2. Connection method: To remove original and Sharp LQ10D213 connected signal line, insert the signal interface LQ10D213-RP. Due LQ10D213-RP uses LED-backlit high-contrast, high-resolution LCD screen, the two high-voltage lines is no longer required, protected with insulating tape. Note: LQ10D213-RP LCD probe sets designed specifically for the A-PM-90A, on the other machines we have not tested it.

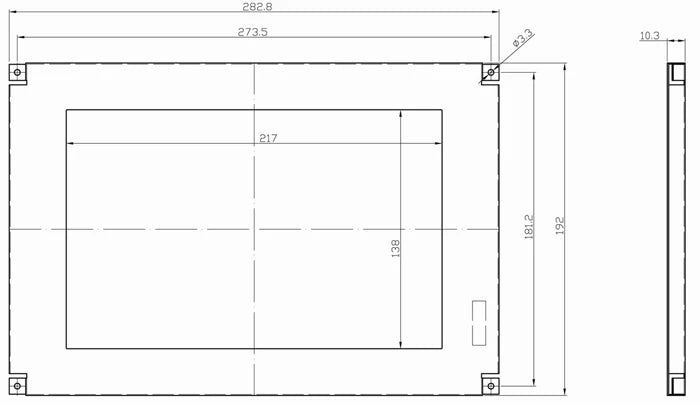

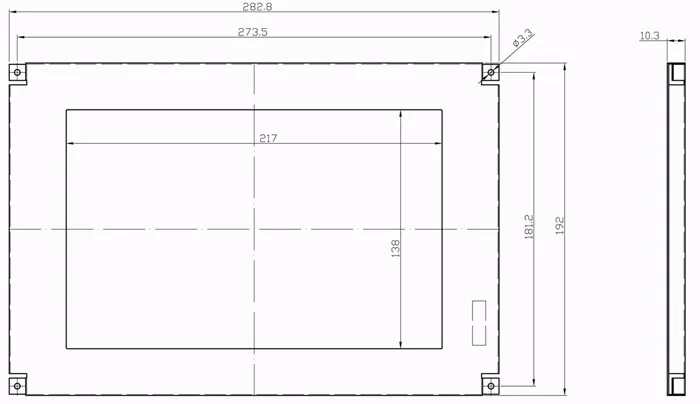

3 Dimensions:

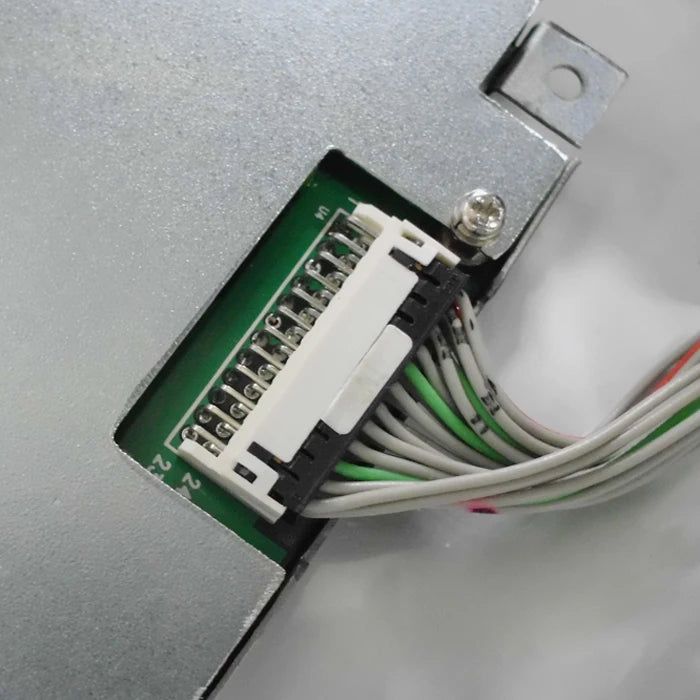

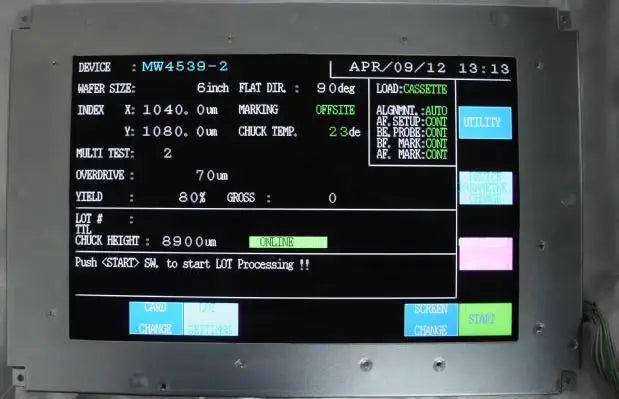

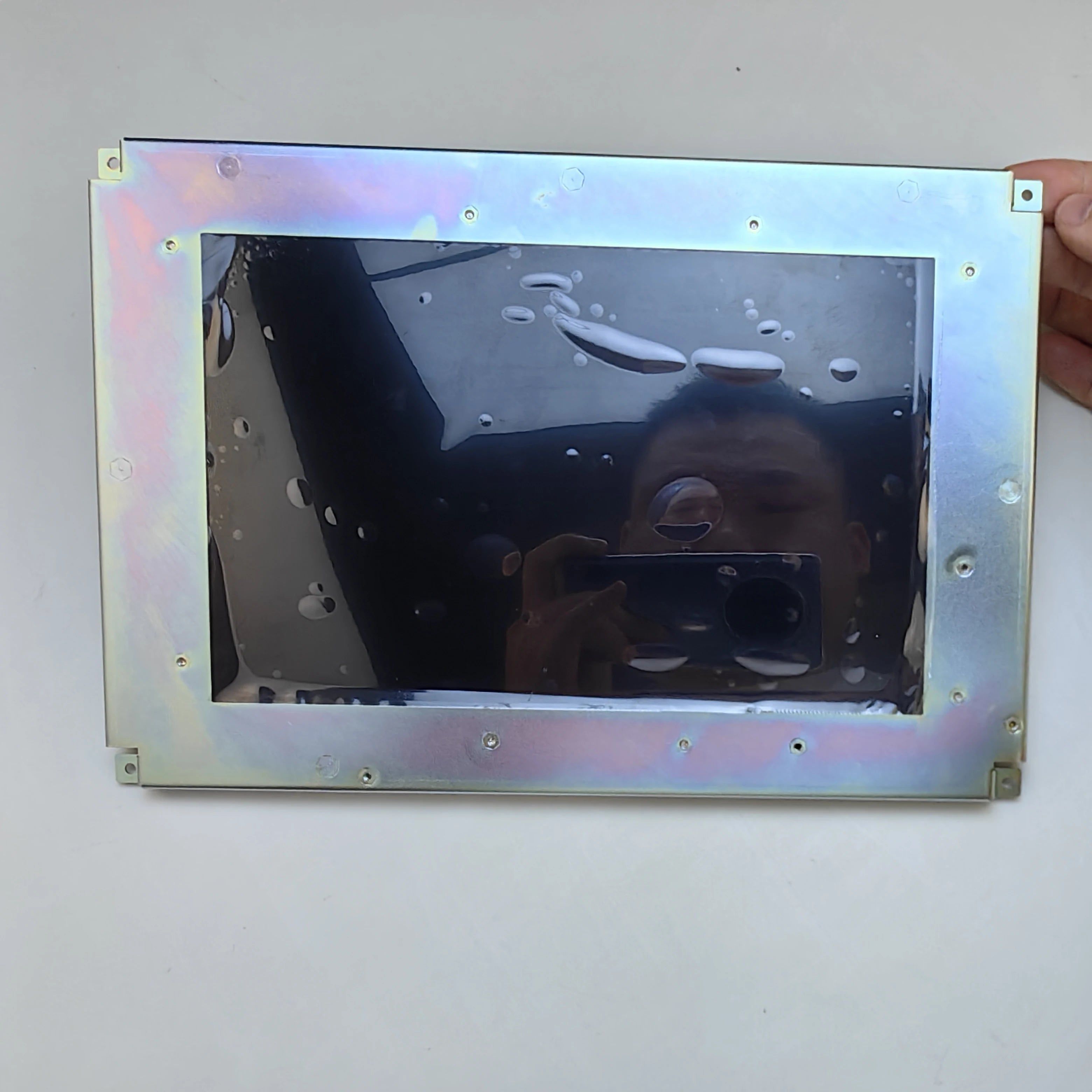

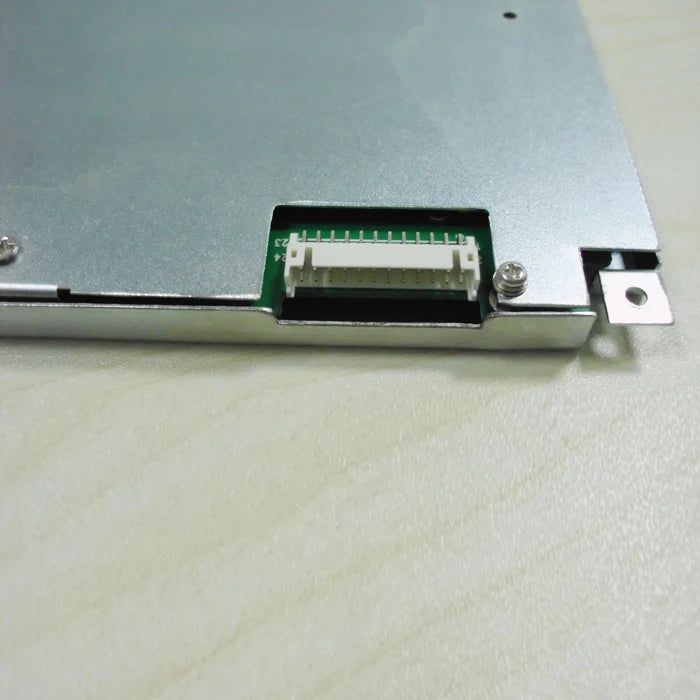

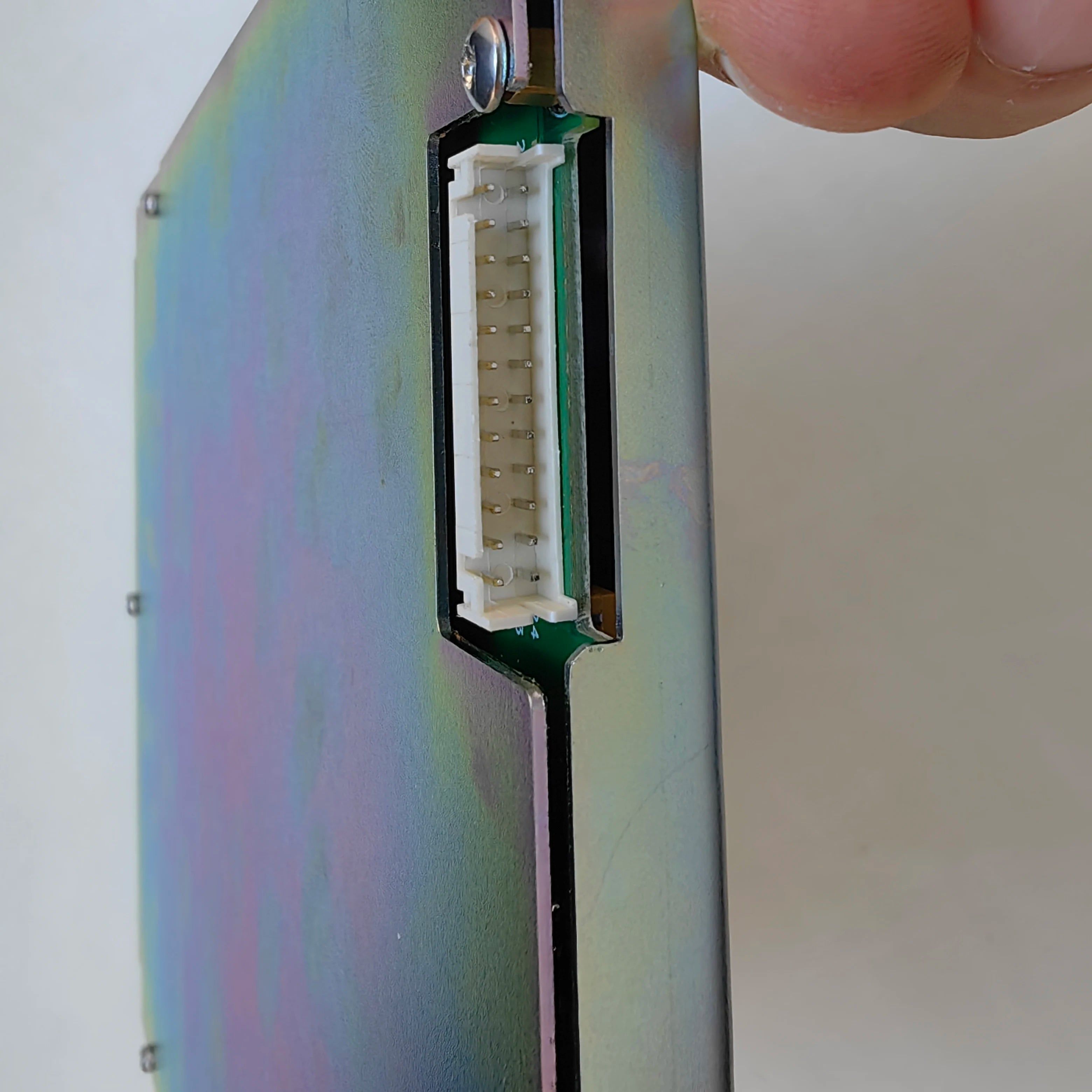

4. Appearance and display diagram:  |
