Performance specification
| Display | 15" TFT |
| Resolution | 1024*768 |
| Color | 65536 |
| Backlight | 2CCFL |
| Brightness | 250cd/m2 |
| Backlight life | 50000 hours |
| Touch Panel | 4-wire precision resistance network |
| Processor | 32-bit 520MHz RISC |
| Memory | 16M FLASH + 32M SDRAM |
| Expandable memory | 1 SD Card, 2 U Disks |
| Recipe memory & RTC | 512KB + RTC |
| Printer port | USB/Serial port |
| Ethernet | 10/100 Base-T |
| Audio Interface | 1 Audio Output Interface |
| Video Interface | 2 PAL Signal Video Input Interface,BNC Connector |
| Program download | 1 USB SLAVE Port |
| COM port | COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4 COM2:RS232 |
| Expansion Port | PROFIBUS-DP |

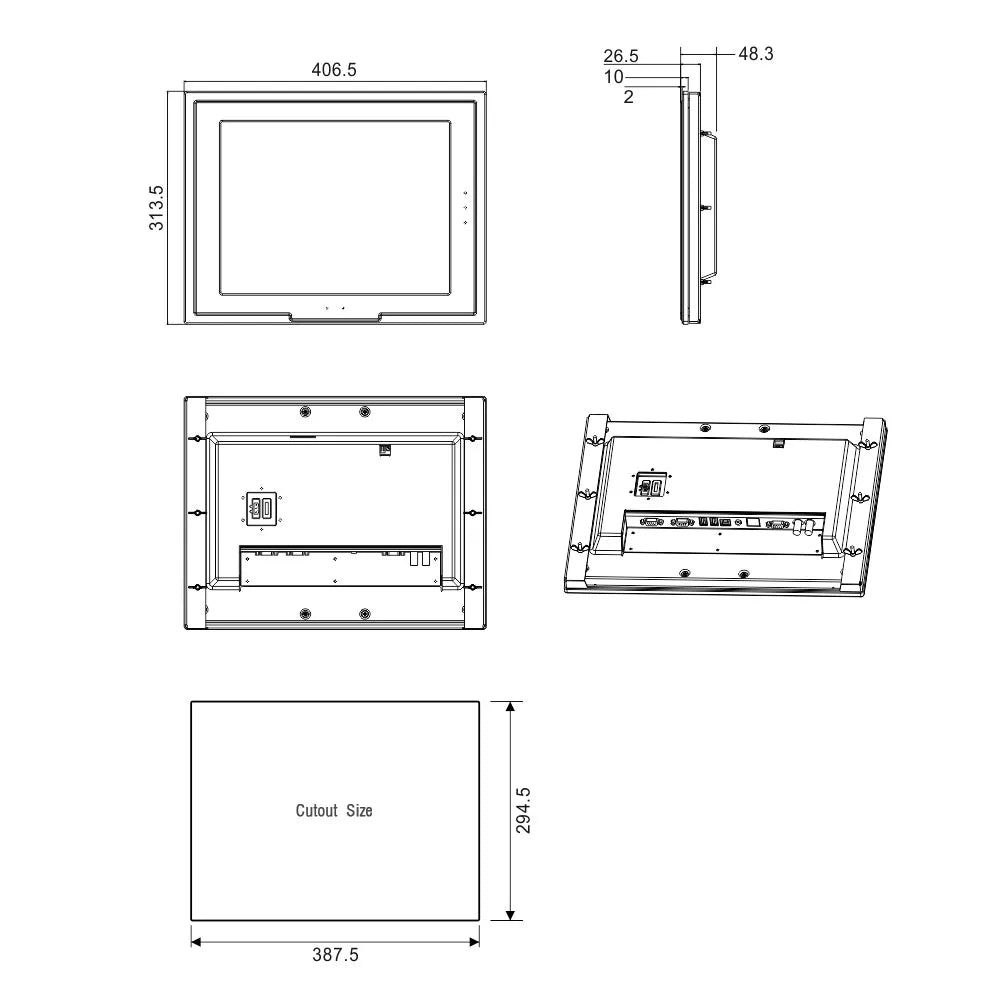

Dimensions (Unit:mm)
Structure specification
| Shell color | Black |
| Shell material | metal |
| Dimensions(mm) | 406.5×313.5×48.3mm |
| Cutout size(mm) | 387.5×294.5mm |
| Weight | 5.1 Kg |
Support
Feel free to contact us via Email or the following ways.
When will product ship?
We will ship your order within 1~2 days after we receive it.
It usually takes 2~7 days before you are able to check the logistics information in system.
Shipping may be delayed on China holidays and Sunday.
Product Features :
100% new and high quality
1. New , strong packing .
2. 1 year warranty .
Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends on the laws in the destination country .
Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction .
