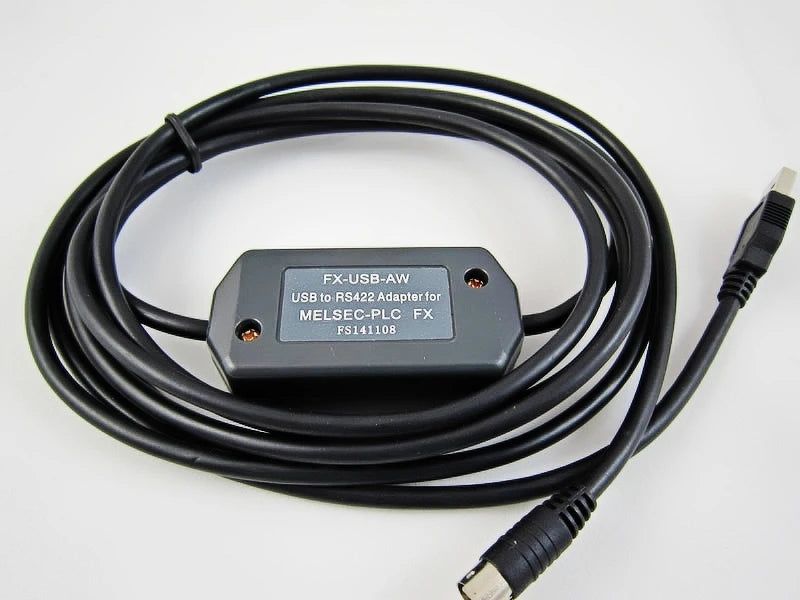

Mitsubishi FX series USB PLC programming interface conversion cable.USB/RS422 interface for Mitsubishi FX3U/FX2N/FX1N/FX0/FX0S/FX1S series PLC, 2.5 meters, with communication indicator, the largest communications range is up to 2Km.
Summary:
FX-USB-AW is the programming cable in which USB interface provided both the serial connection and RS422 signal conversion. Under the control of computer-driven driver, the programming cable makes it possible for the computer's USB interface to simulate the traditional serial (known as COM interface), thus various existing programming software such as communications software, monitoring software and other applications can be normally used. The working power supply of this cable is directly from the USB port, but not the PLC programming interface. The two-color LED on the converter box indicates data’s transceiving status.
FX-USB-AW is applicable to the FX3U series PLC which has the MD8F radio socket of Mitsubishi, such as FX3U/FX2N/FX1N/FX0/FX0N/FX0S/FX1S, and it can substitute the FX-232AW module. The largest communications distance is two kilometers.
Do choose the USB-SC09 programming cable, for A and all FX series Mitsubishi PLC (including the old products FX2/FX2C).
