Please Note, this goods made by us, not original simatic products.
But it can communication with your PLC and HMI.
Profibus Communication work fine !

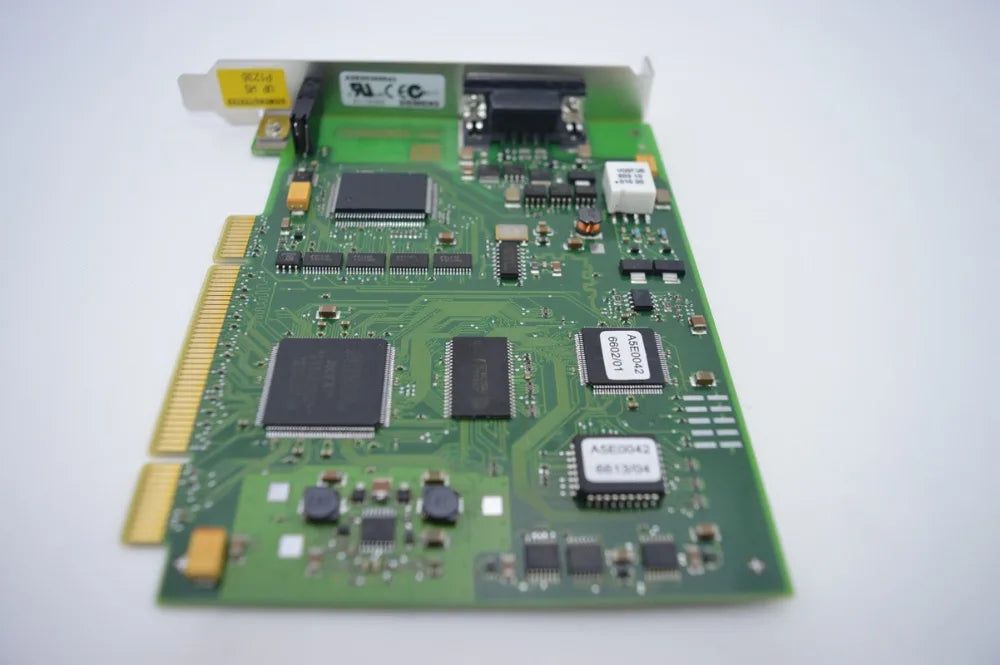

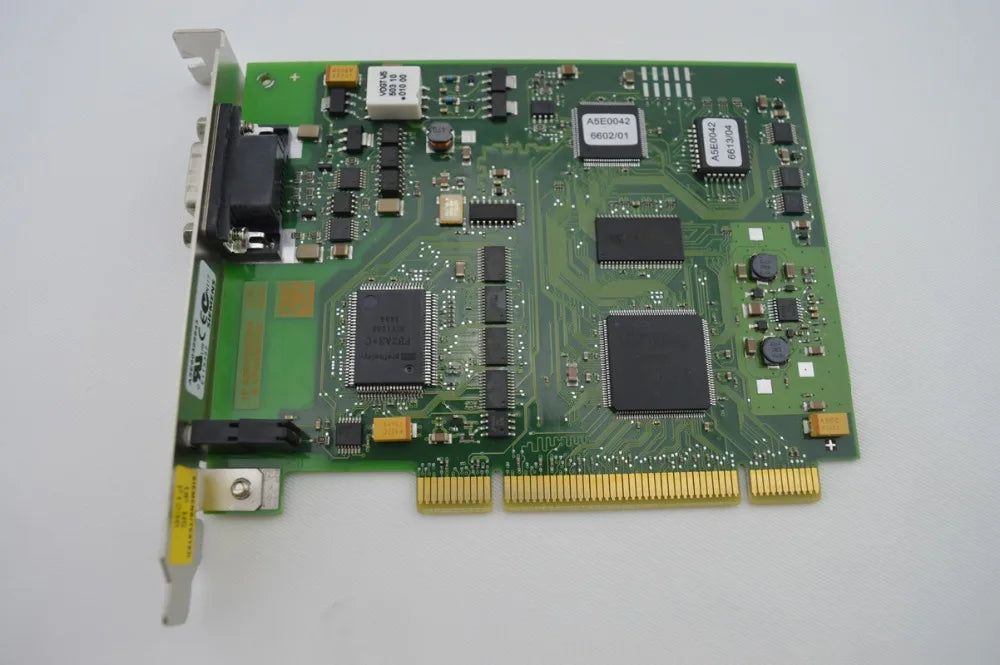

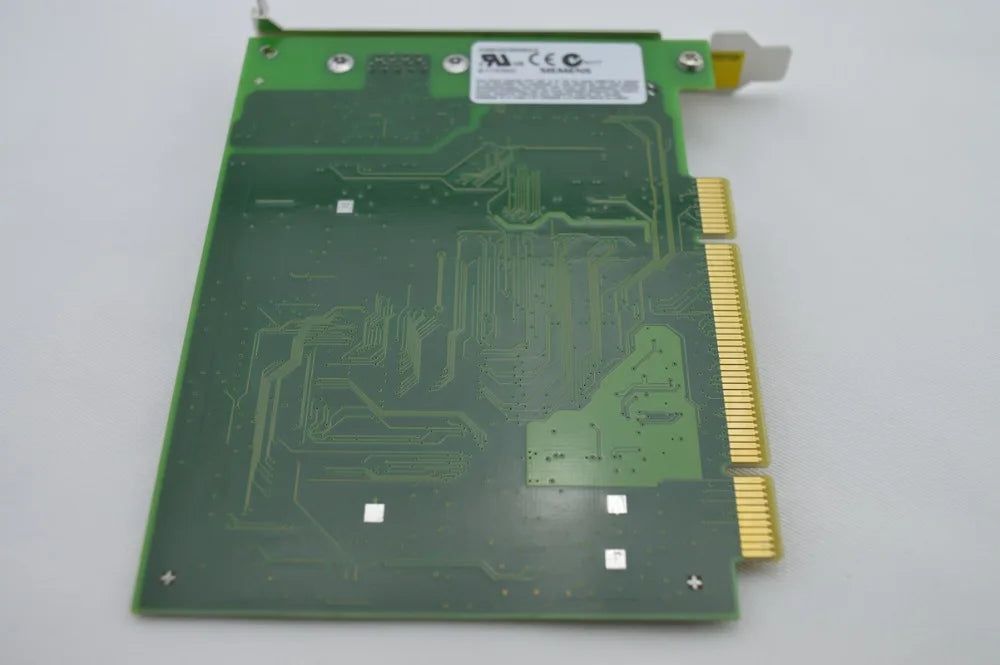

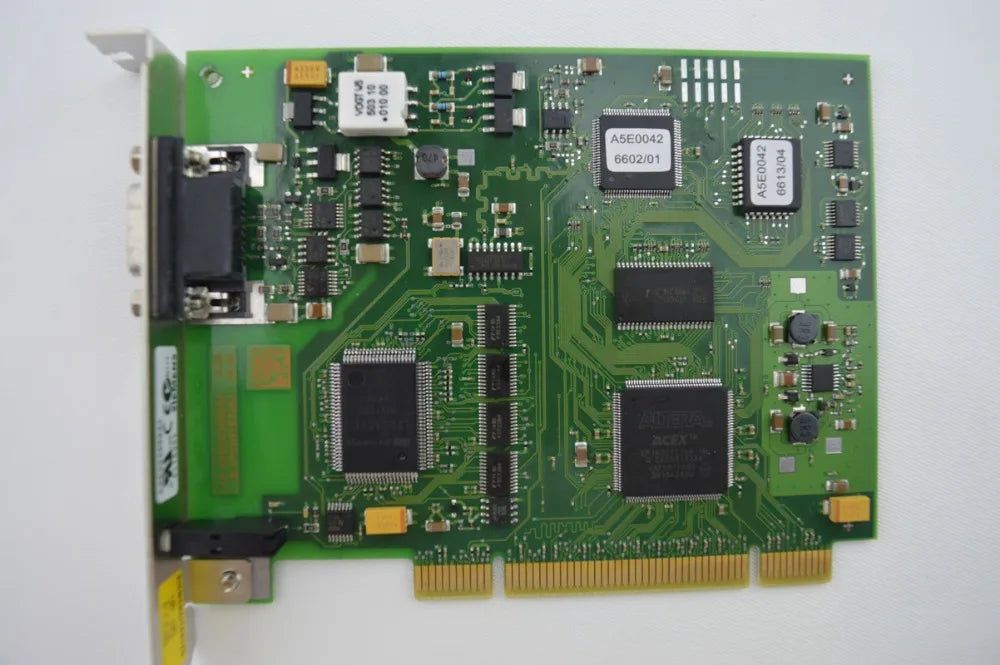

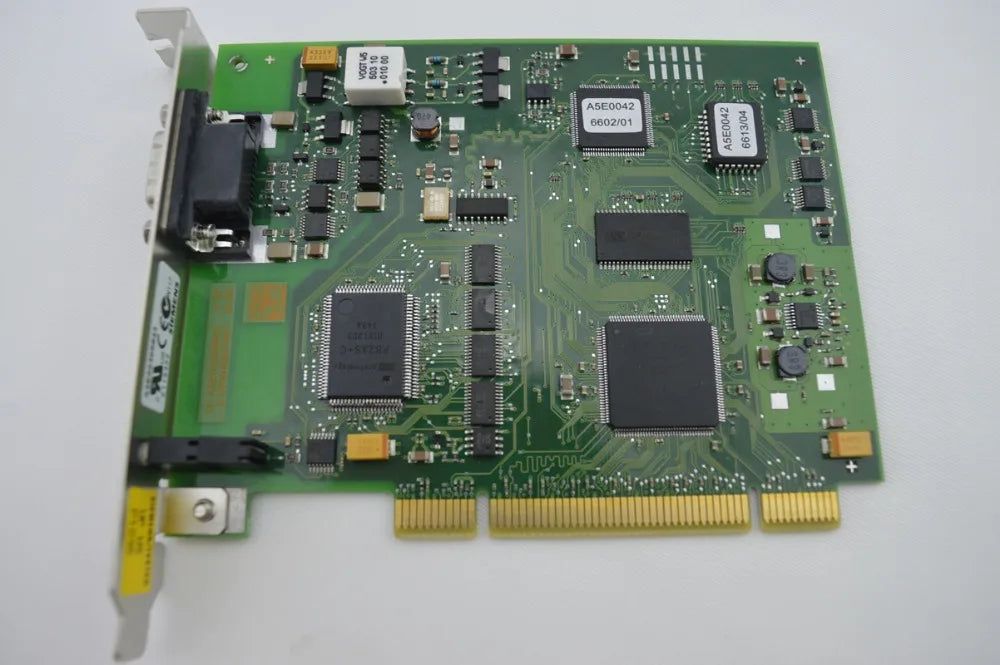

CP5611-A2 communication card which is Anti-lightning and anti-surge, corresponding to the Siemens 6GK1561-1AA01, photoelectric isolation, and applied to desktop computer's PCI slots, to achieve the PROFIBUS DP / MPI / PPI communications between PC or PG and the SIMATIC network, communication rate is 9.6 Kbps~12Mbps.
Not made by Siemens,OEM product
Not including MPI extension cable for card communication,if you also need this,please also order this:
Overview:
CP5611-A2 communication card for industrial applications for the isolated design, RS485 port in an increase of anti-lightning surge protection circuit and over-current protection, the use of on-chip industrial apply to a wide temperature range for the realization of PG or PC with SIMATIC Network between PROFIBUS DP/MPI/PPI communications connection.
- Communication services:
PROFIBUS-DP master grade 1 and 2
PROFIBUS-DP slave and SOFTNET-DP slave
MPI/PPI communications
PG/OP communication .
SOFTNET-S7 and S7 for communications
And SOFTNET-DP or SOFTNET-S7 for S5 compatible communications (FDL-based interface SEND / RECEIVE function) - CP5611-A2 apply to the following software:
STEP7 V.52 and above
SOFTNET-S7
SOFTNET-DP
SOFTNET-DP slave .
COM PROFIVUS V3.3 and above
STEP 7-Micro/WIN V3.1 and above
ProTool, ProToo/Pro
NCMPC
Technical specifications:
- Transfer rate: 9.6Kbps ~ 12Mbps, corresponding to the maximum distance communication standard in line with the PROFIBUS

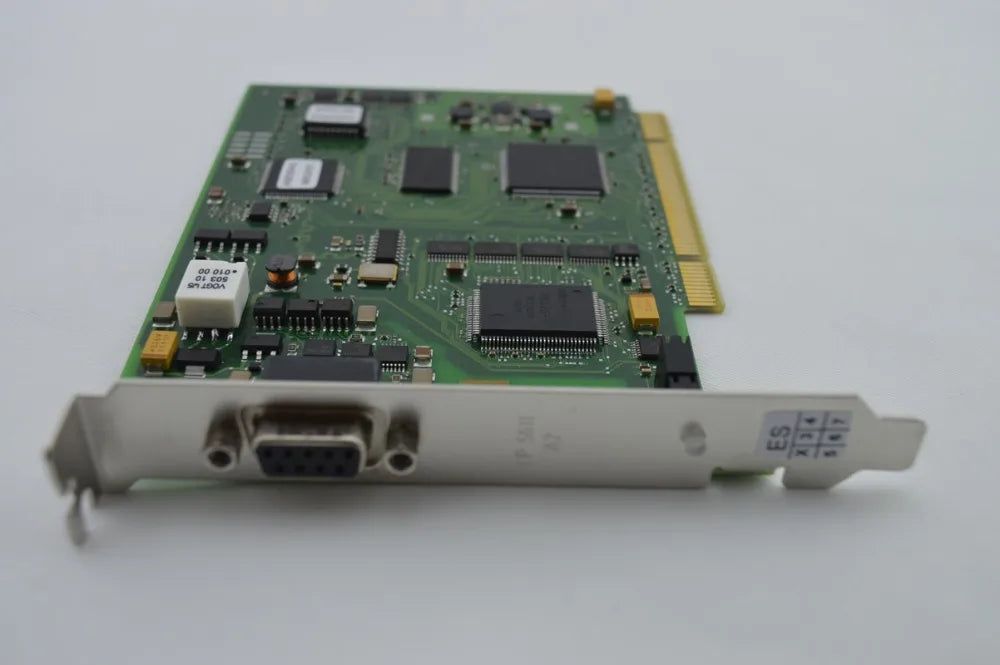

- Interface: connecting PROFIBUS/MPI/PPI, the isolation of the 9-pin Sub-D socket
- Isolation Voltage: 1000VDC
- RS485 port with anti-lightning surge protectors, repeatability surge capacity: Ipp = 100A (10/700us, 4KV)
- Standard: ITU-TK20/21, VDE 0433. ± 15KV ESD (ESD) protection
- Since the resumption of over-current protection: RS485 port can withstand up to 60V voltage caused by the sustained over-current
- Link PG/PC: PCI2.1 standard slot
- Standard voltage: +5 VDC
- Power: 2.0W
- Operating temperature: 0 ~ + 70
- Size (width × high) (mm): 102 × 130
- Weight: 100g
