Engineering DVI-D to VGA converter with high resolution1920*1080@60HZ
Factory direct sales, wholesale price is negotiable, starting from five units

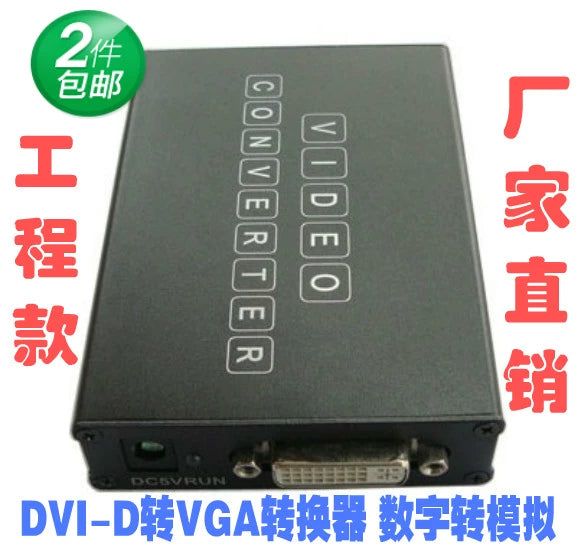

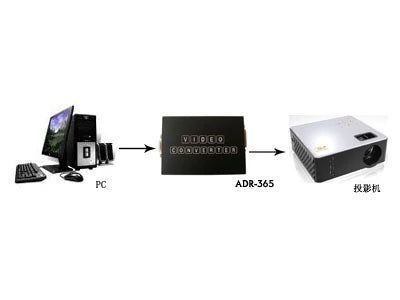

DVI-D to VGA Converter (Model: ADR-365)It can convert one DVI signal into a VGA analog signal, and the input signal supports computers, consoles, matrices and other devices. The input uses the DVI-I interface (only supports DVI signals), and the output uses the D-Sub interface, which is very suitable for new or existing banking, transportation, aviation, docks, power, security, civil air defense and other command and dispatch systems, video and telephone conferences, network teaching broadcasts, LED large-screen display systems, etc. Simple installation, plug and play. (Note: This device converts point-to-point, and the resolution varies with the input DVI signal).
① One DVI-D signal input;
② One VGA (RGB) signal output;
③ VGA (PC) output resolution: 640 * 480@60Hz, 800 * 600@60Hz, 1024 * 768@60Hz, 1280 * 720@60Hz, 1280 * 768@60Hz, 1280 * 800@60Hz, 1280 * 1024@60Hz, 1360 * 768@60Hz, 1600 * 1200@60Hz, 1920 * 1080@60Hz
④ LED indicator light, when the signal source or signal terminal is out of working state, the corresponding indicator light will light up.
⑤ Working power specification: AC input (50 /60HZ) --100V-240V, DC output: DC 5V/1A
(6) Plug and play function, no need to install any software, easy to use

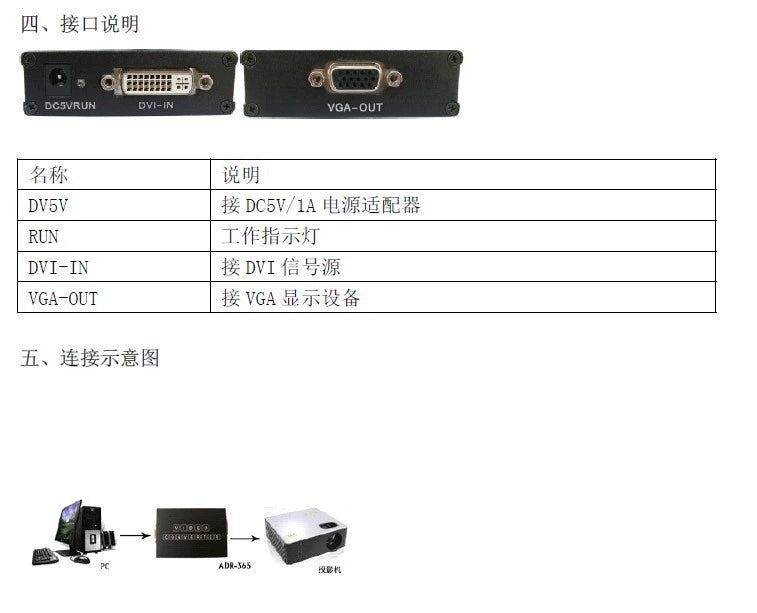

| name | explain |
| DV5V | Connect the DC5V/1A power adapter |
| RUN | working indicator |
| DVI-IN | Connect to DVI signal source |
| VGA-OUT | Connect to VGA display device |
