All Fanuc and Mitsubishi monitors in our store are guaranteed for 15 months, and the quality is guaranteed!
New features:

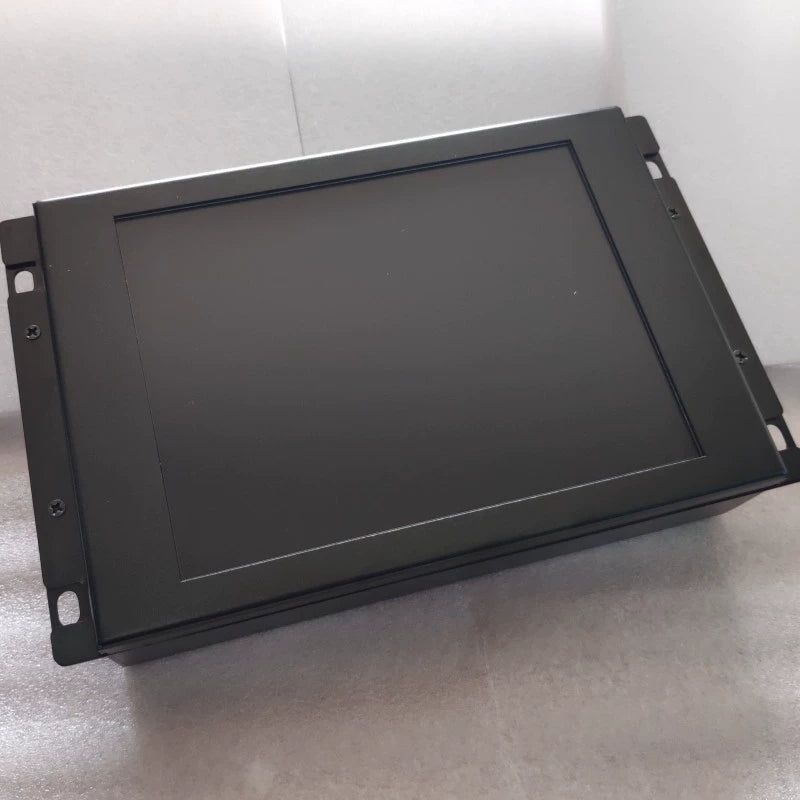

1. All-black aluminum shell appearance
2. Plug and play, original interface original line original screw hole position
3. Seven font colors can be adjusted arbitrarily
4, long-term quality assurance 15 months
This product is an industrial liquid crystal display, used to update and replace the 9 inch single amber CRT type picture tube display used in the Mitsubishi numerical control system E60 M64 M64S C64 system. The corresponding Mitsubishi manufacturer model isThe other 9-inch related models of the FCUA-CT100 are: BM09DF, MDT962B-1A.

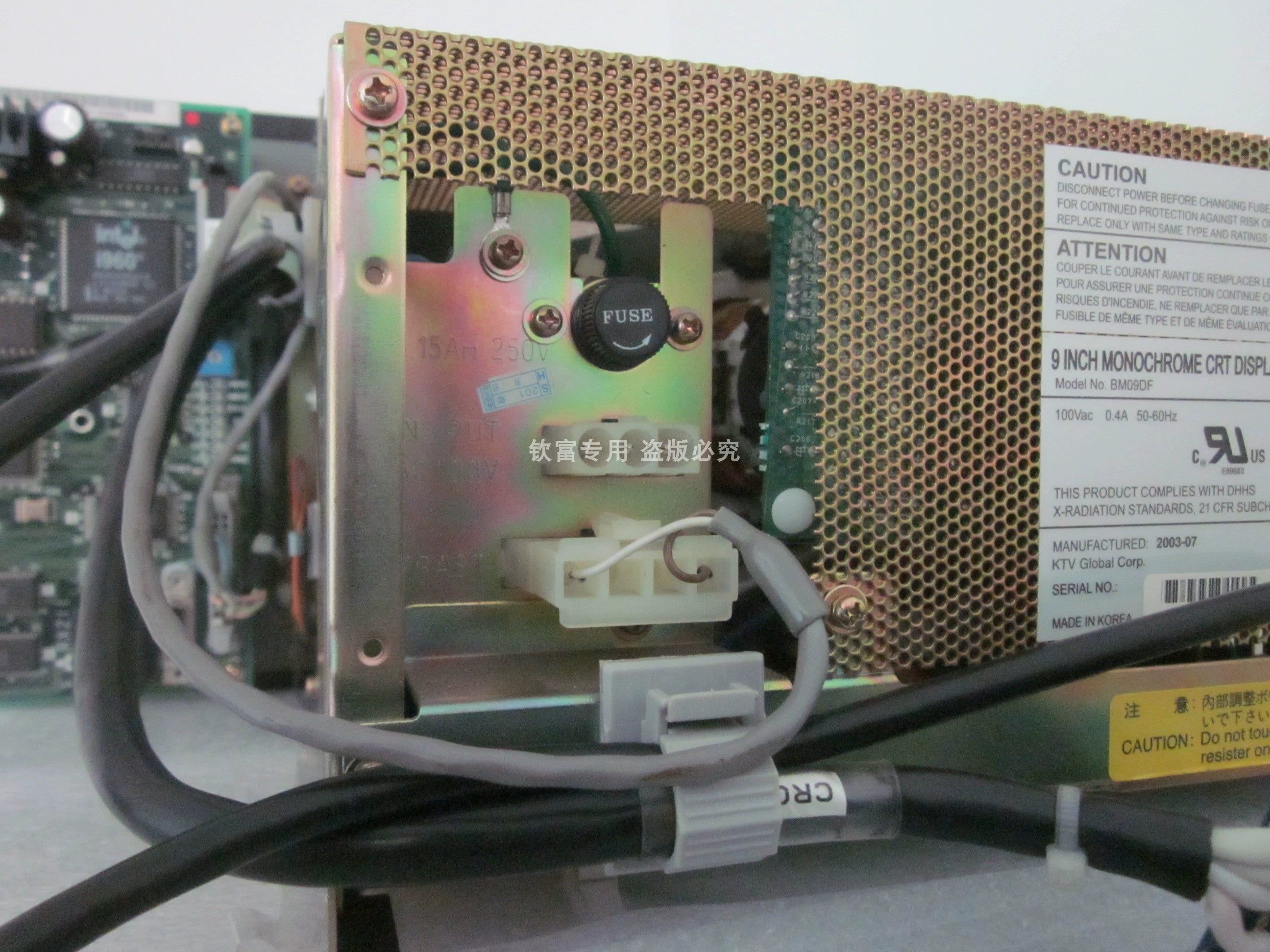

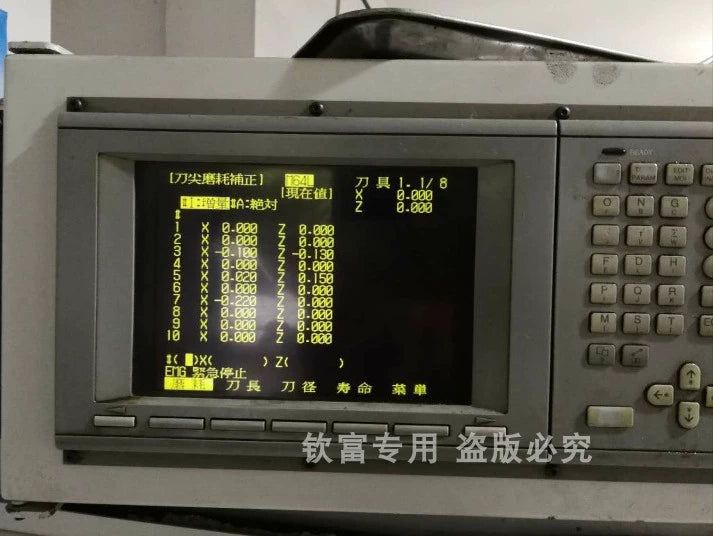

Older CRT monitors:

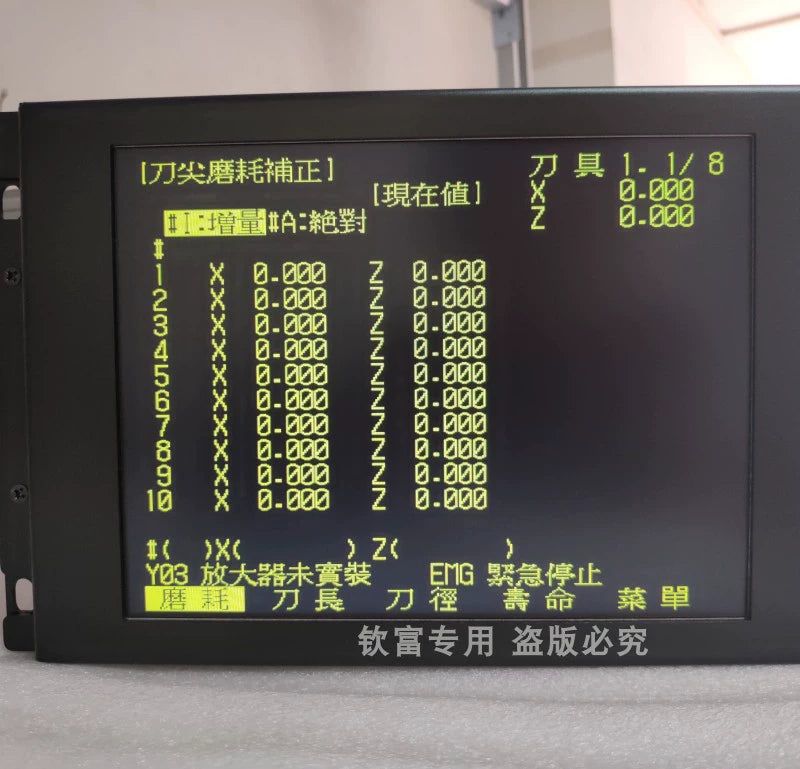

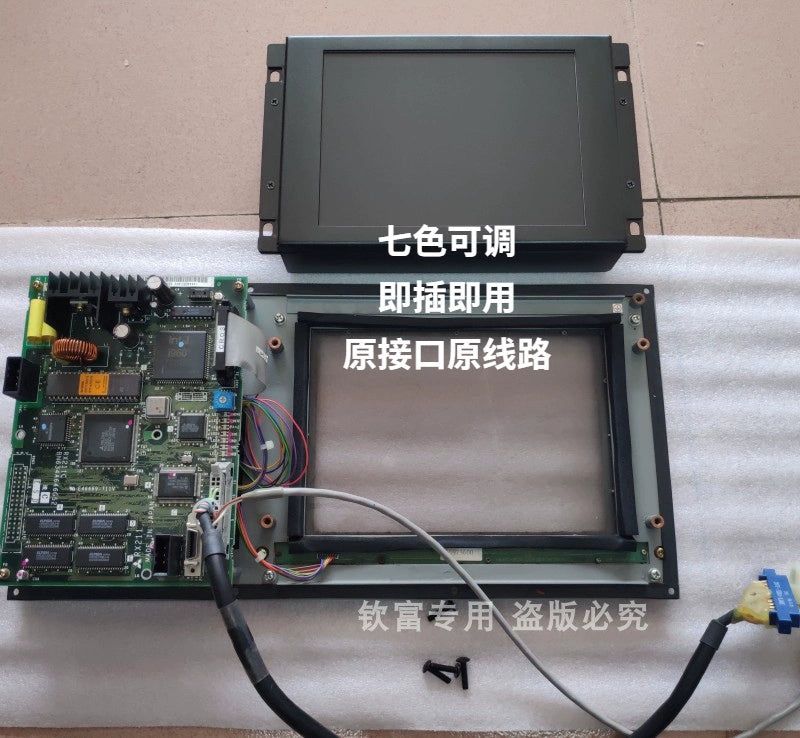

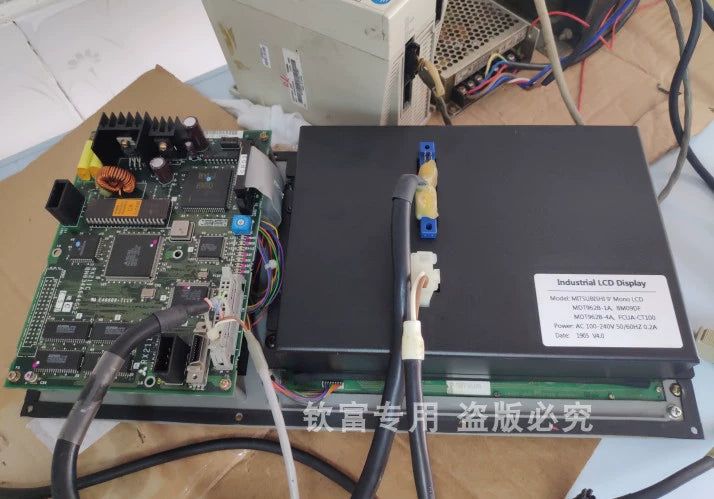

Renderings of the new LCD installation:
Mitsubishi MDT962B-1A, BM09DF, FCUA-CT100, M64 E60 monitor parameters:
1. CRT (picture tube) size 9 inches, viewing angle 90 degrees Neck Diameter 20mm
Color: Amber, Explosion Proof Standard: T-Band Standard
2. Signal input, video, analog signal (positive) 0 - 2.3V
Step mode, horizontal synchronization, TTL digital signal (positive polarity)
Field step mode, vertical synchronization, TTL digital signal (positive polarity)
3. Scanning frequency, line frequency H = 24Khz field frequency V == 50.5Hz
4. Video display size, horizontal 160mm +/- 3mm vertical 110mm +/- 3mm
5. Power supply AC100-230V (50/60Hz)
6. Signal input VIA standard 10 PIN EDGE connector
Original Mitsubishi MDT962B-1A, BM09DF, MDT962B-4A, MDT947 Mitsubishi M64 E60 numerical control system LCD machine tool display
1. CRT (picture tube)
Size 9 inches
Viewing angle 90 degrees
Neck Diameter 20mm
Color: Amber
Explosion-proof standard: T-Band standard
2. Signal input
Video, analog signal (positive) 0 - 2.3V
Step mode, horizontal synchronization, TTL digital signal (positive polarity)
Field step mode, vertical synchronization, TTL digital signal (positive polarity)
3. Scanning frequency
Line frequency H = 24Khz
Field frequency V == 50.5Hz
4. Video display size
Horizontal 160mm +/- 3mm
Vertical 110mm +/- 3mm
5. Power supply
AC100-230V（50/60Hz）
6. Signal input
VIA Standard 10 PIN EDGE Connector
