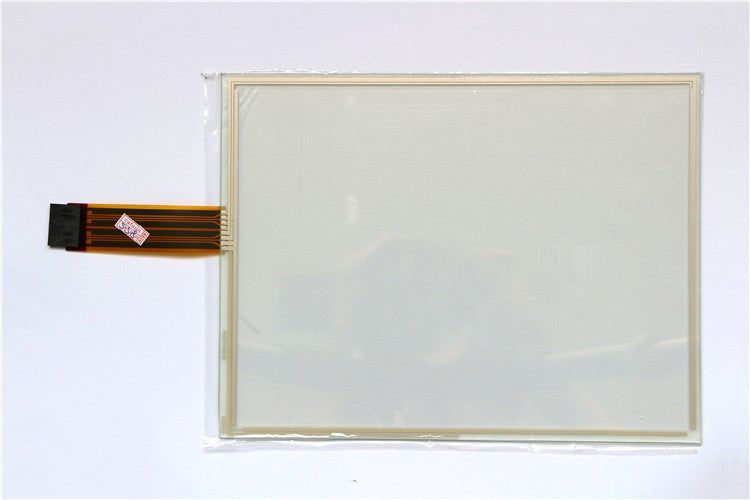

| Size(inch) | 10inch |
| Outside (mm) | 231.5mm*177mm(9.11in*6.97in) |
| V A (mm) | 218.5mm*167mm(8.6in*6.57in) |
| A A (mm) | 213.4mm*160.9mm(8.4in*6.33in) |
| FPC(mm)A | 84.5mm*1mm |
| PIN(mm)A | 8pin |
| Pitch | Pitch=1mm |
| Thickness | 2.0mm |
| Rated Voltage | DC 5V 35mA |
| Operating force | 20-150g R0.8 By pen |
| Connector Resistance | 20MΩ↑ @ DC 25V |
| Transmittance | >78% |
| Operating Temperature | -10° C ~ 60° C |
| Storage temperature | -20° C ~ 70° C |
| Input life | >1.000.000 times (Tip R0.8mm) |
| lineation test | >100.000 times (Tip R0.8mm) |
| Electrostatic Endurance | No abnormal appearance after 10kv, 100W, 250PF electrostatic used. |
| High temperature storage | 80, 40hr |
| Low temperature storage | -30, 40hr |
| High temperature high Humidity storage | 70,70%RH,120hr |
| Temperature Cycling | -20 — 70 (0.5hr each),10cycles |
Support
Feel free to contact us via Email or the following ways.
When will product ship?
We will ship your order within 1~2 days after we receive it.
It usually takes 2~7 days before you are able to check the logistics information in system.
Shipping may be delayed on China holidays and Sunday.
Product Features :
100% new and high quality
1. New , strong packing .
2. 1 year warranty .
Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends on the laws in the destination country .
Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction .
